Capacitive Soil Moisture Sensor Module

$0.65

Capacitive Soil Moisture Sensor Module Not Easy to Corrode/Wide Voltage Wire 3.3~5.5V/Corrosion Resistant with Gravity

Quick RFQ

Capacitive Soil Moisture Sensor Module（Voltage Wire 3.3~5.5V Corrosion Resistant with Gravity）

Introduction

The Capacitive Soil Moisture Sensor Module is a device used to measure soil moisture. It employs capacitive technology to detect the moisture content in the soil. Typically, this module comprises two electrodes. When placed in the soil, the moisture level affects the capacitance between these electrodes, allowing inference of the soil’s moisture level. This sensor module can be used in conjunction with microcontrollers such as Arduino, Raspberry Pi, etc., to monitor the soil moisture of plants and take appropriate irrigation measures as needed.

Features

Supports Gravity 3-Pin interface
Analog output

Applications

Garden plants
Moisture detection
Intelligent agriculture

Specification

Operating Voltage: 3.3 ~ 5.5 VDC
Output Voltage: 0 ~ 3.0VDC
Interface: PH2.0-3P
Dimension: 98mm * 23mm (3.86in x 0.905in)
Weight: 15g

Series	Capacitive Soil Moisture Sensor Module

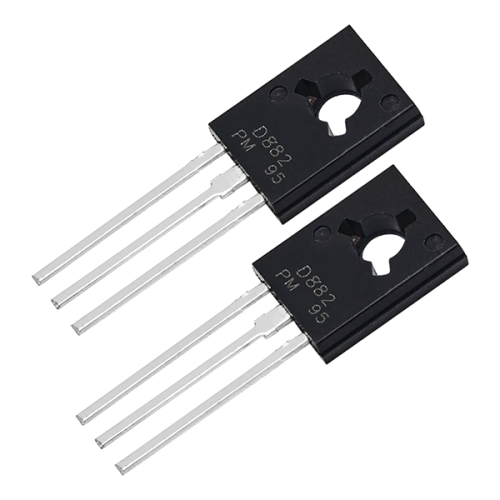

NPN Power Transistor 2SD882 – Reliable Performance with High Gain
$0.28 Select options This product has multiple variants. The options may be chosen on the product page
LM393P DIP8 LM393 DIP LM393N 393 DIP-8 new and original IC
$0.61 Select options This product has multiple variants. The options may be chosen on the product page

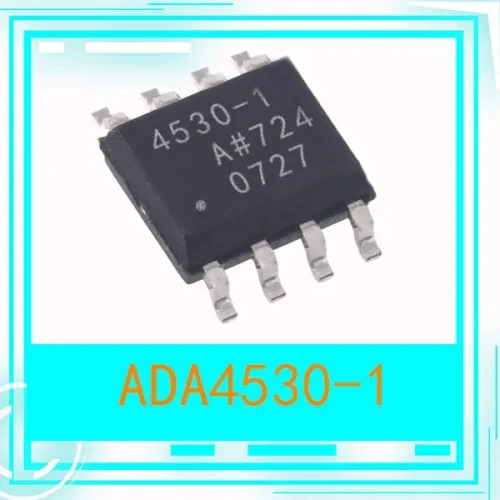

ADA4530-1 IC Chip
