Pro mini Atmega328P Pro Mini 328 Mini ATMEGA328 3.3V 8MHz 5V 16Mhz

Product Information

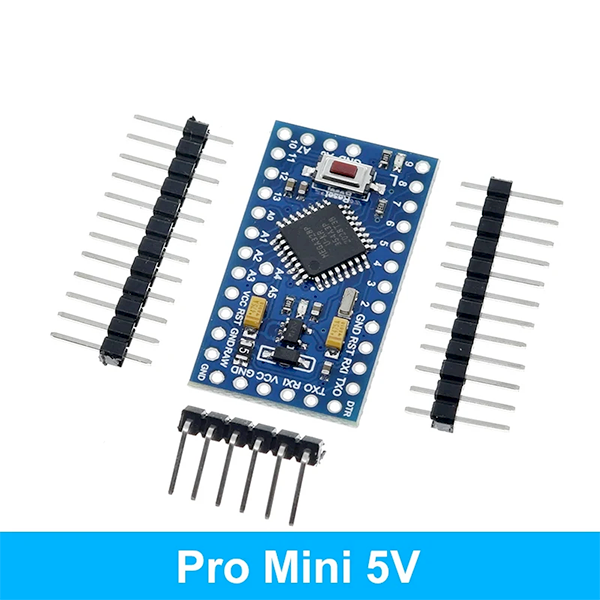

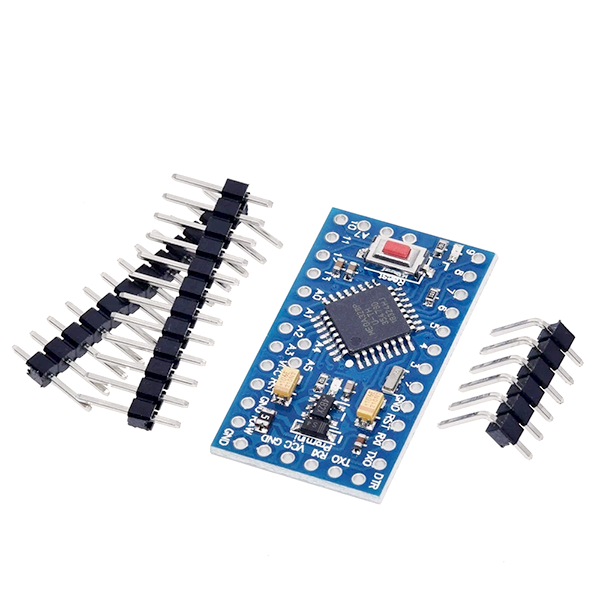

Pro Mini Atmega328P

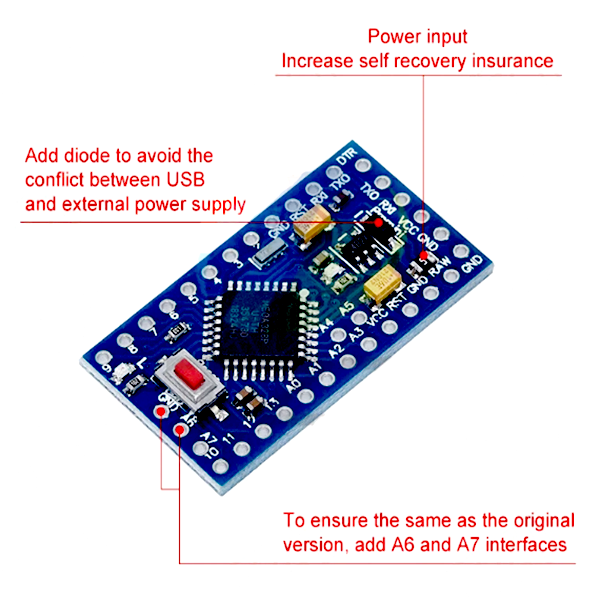

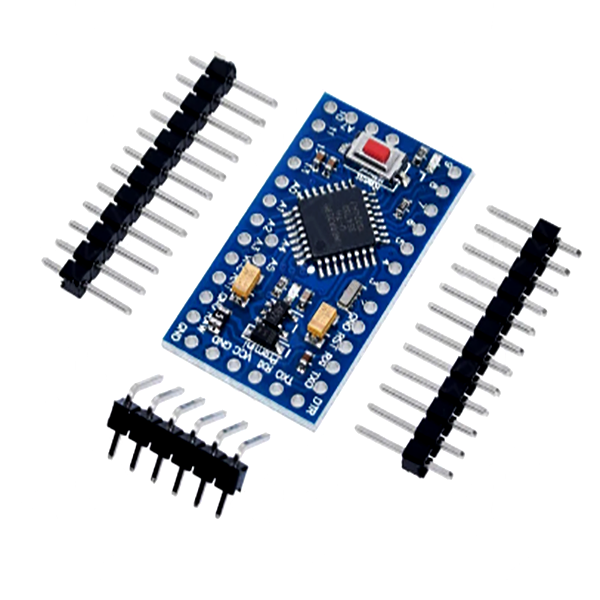

Pro Mini is a mini type of Arduino atmage328. It is especially suitable for breadboard plug-in and welding, smart home and robot control. This pro Mini not only improves the layout, but also adds two analog io-a6, a7, self recovery fuse, etc. 100% compatible with the original version of sparkfun.

The professional Mini Pro is a microcontroller circuit board. It has 14 digital I/O pins(6 of which can be used as PWM output), 8 analog inputs, a 16 MHz resonator, a reset button, and mounting hole pin heads.

TECHNICAL PARAMETERS
1.14 digital input/output port RX and TX, D2 ~ D13,
2.8 analog input port A0 ~ A7
3.1 to the TTL level a serial port to send and receive port RX/TX
4.6 a PWM port, D3, D5, D6, D9, D10, D11
5. Using Atmel Atmega328P – AU microcontroller

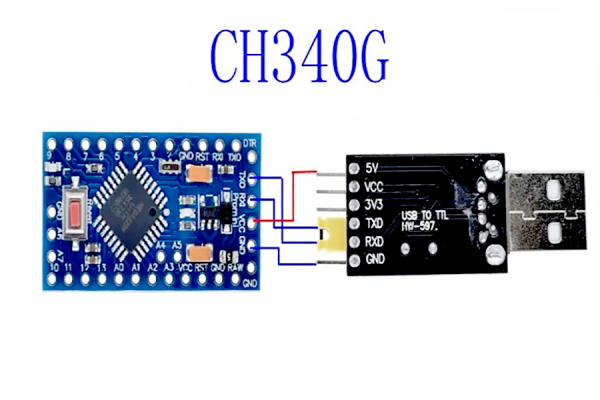

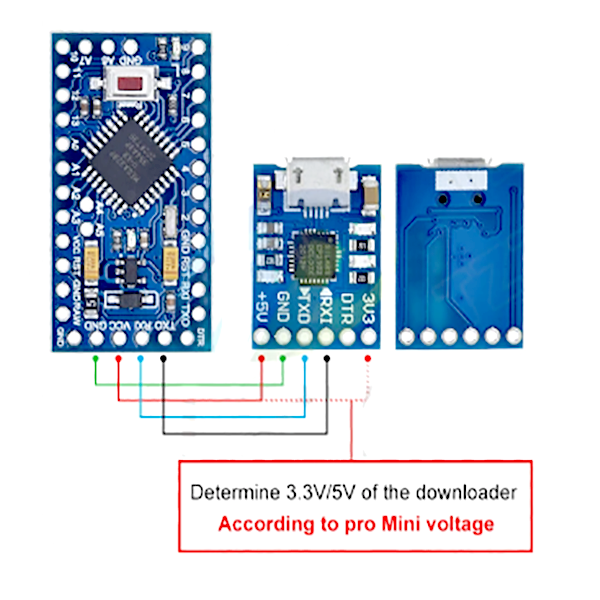

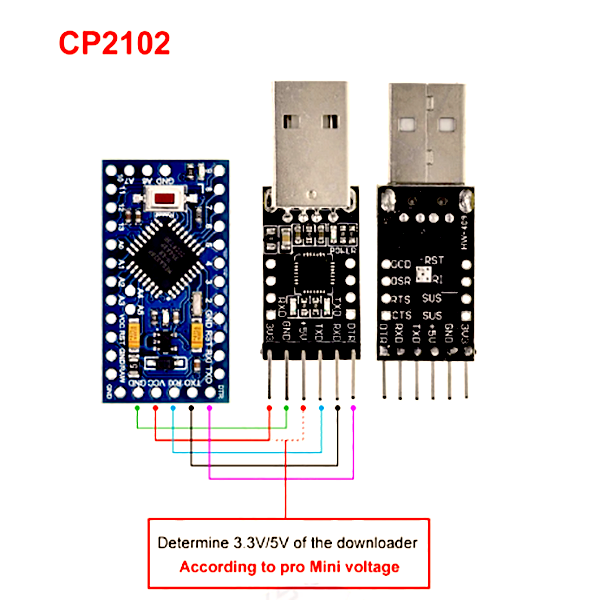

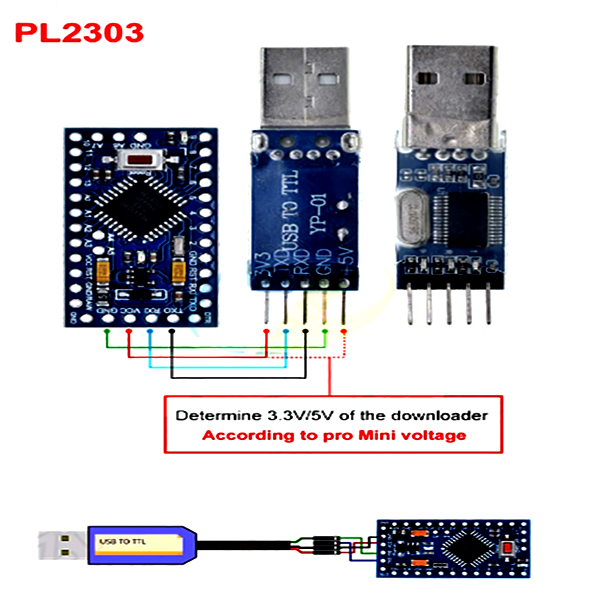

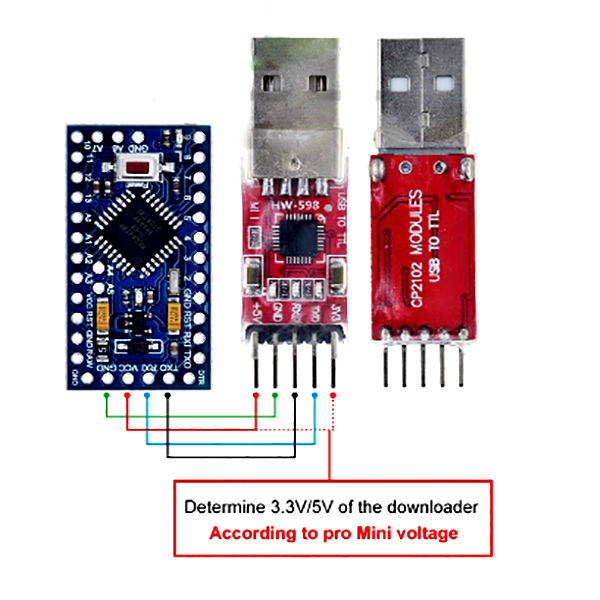

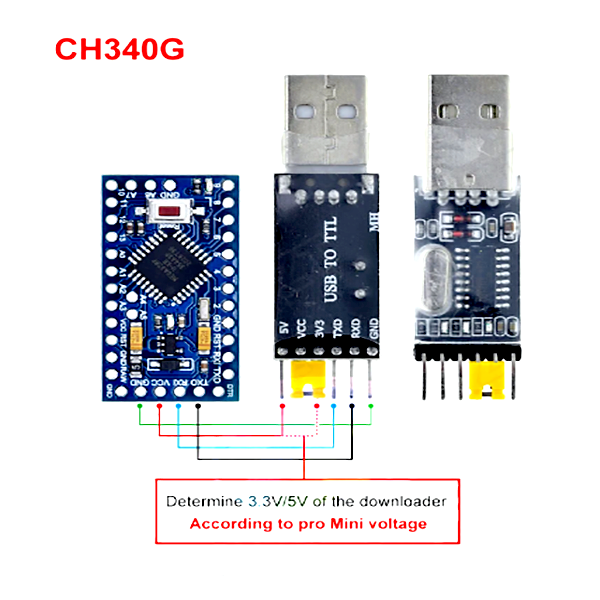

6. Support serial download
7. Support external 3.3 V ~ 12 V dc power supply
8. Support 9 v batteries
9.16 MHZ clock frequency

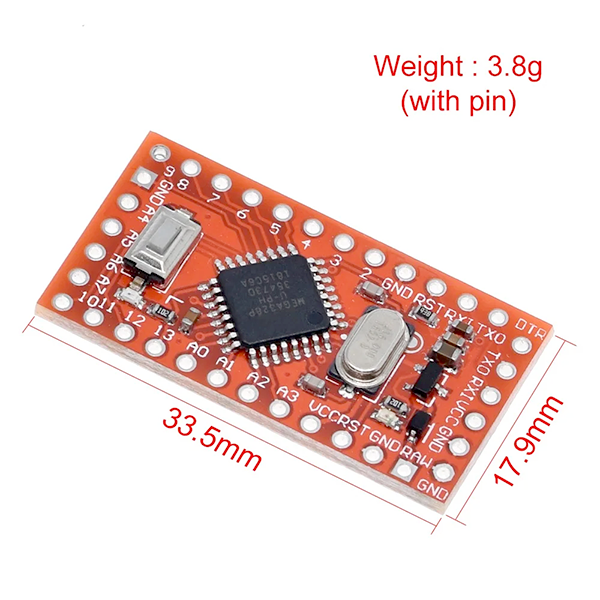

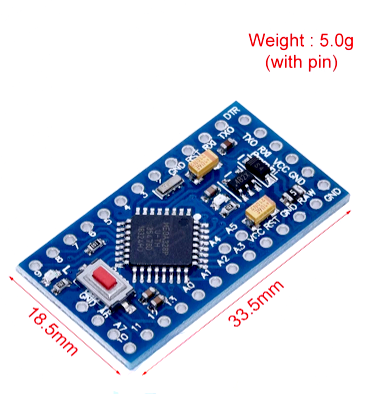

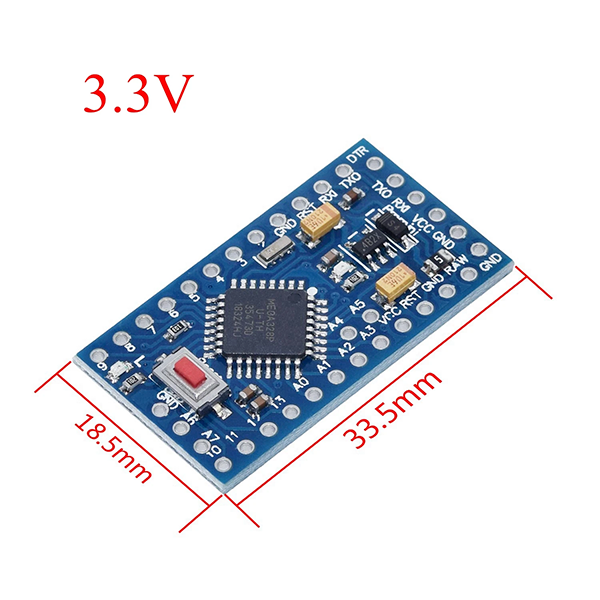

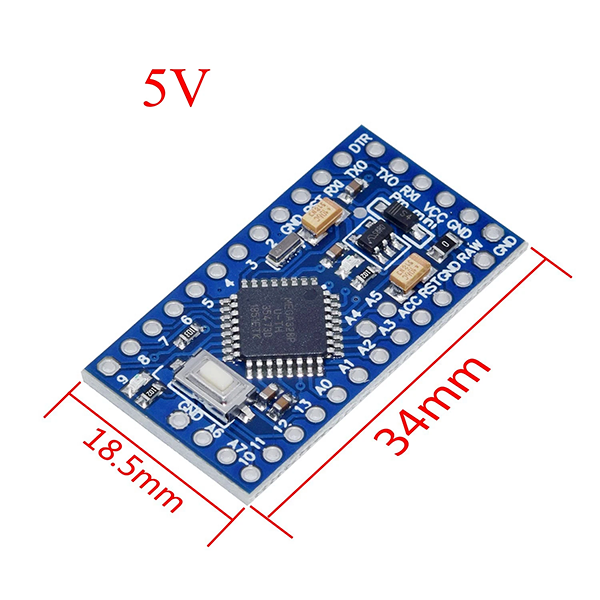

10. Size: 33.0 * 18.0 (mm)
