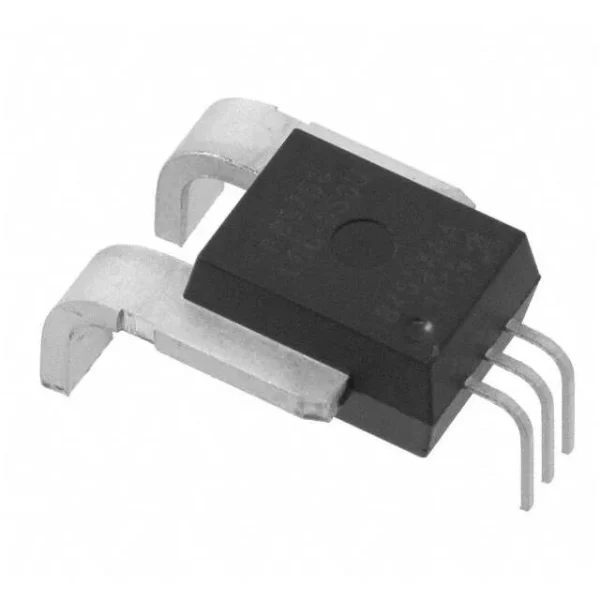

ACS770LCB-100U-PFF-T CB-5
$29.00
Quick RFQ
| Specification | Value |
|---|---|
| Model | ACS770LCB-100U-PFF-T |
| Manufacturer | Allegro MicroSystems |
| Device Type | Hall-effect current sensor, open-loop design |
| Current-Sensing Range | 100 A DC (unidirectional) |
| Supply Voltage | 5 V typical (4.5 V – 5.5 V) |
| Output Type | Ratiometric analog voltage |
| Sensitivity (Typ) | 40 mV/A |
| Accuracy (Typ) | ± 0.6 % |
| Linearity | ± 1 % |
| Response Time | ~4.6 µs |
| Frequency / Bandwidth | DC to ~120 kHz |
| Operating Temperature Range | –40 °C to +150 °C |
| Supply Current (Max) | ~15 mA |
| Polarization | Unidirectional (DC only) |
| Number of Channels | 1 |
| Package / Case | 5-CB Formed Leads, PFF (through-hole) |
| Mounting Type | Through-hole PCB |
| RoHS Compliance | Yes (lead-free, compliant) |
| Series | ACS770LCB-100U-PFF-T CB-5 |
|---|

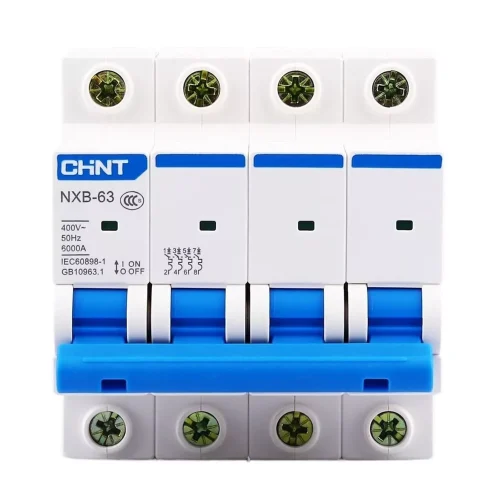

3Pcs NXB-63 4P C16 CHINT Circuit Breaker 4Pole 400V AC Miniature Circuit Breaker
$79.99 Select options This product has multiple variants. The options may be chosen on the product pageTMP103AYFFT DSBGA-4
$3.00 Select options This product has multiple variants. The options may be chosen on the product page

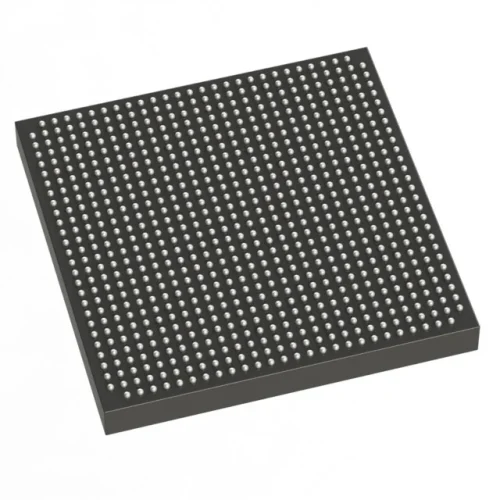

EP2SGX30DF780C3 FBGA-780
$1,126.00 Select options This product has multiple variants. The options may be chosen on the product page
XC5VLX30T-1FFG665C FCBGA-665
$1,361.00 Select options This product has multiple variants. The options may be chosen on the product page

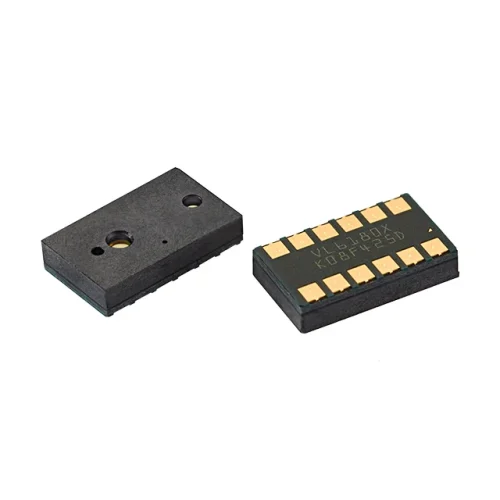

VL53L4CDV0DH/1 SMD-12P
$7.00 Select options This product has multiple variants. The options may be chosen on the product page

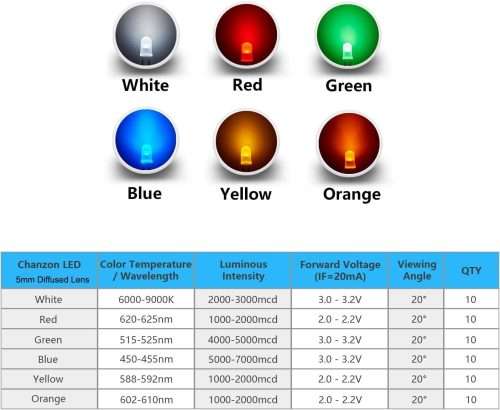

6 Colors 5mm LED Diode Emitting Lights Assortment Kit 3V 60pcs
