AD5420(Single Channel, 16-Bit, Serial Input,Current Source DAC)

Introduction

The AD5410/AD5420 is a low-cost, precision, fully integrated 12/16-bit converter offering a programmable current source output designed to meet the requirements of industrial process control applications.The output current range is programmable to 4mA to 20 mA, 0mA to 20mA or an over range function of 0mA to 24mA. The output is open circuit protected and can drive inductive loads of 1H. The device is specified to operate with a power supply range from 10.8 V to 40V（AD5410/AD5420AREZ) or 10.8V to 60V(AD5410/AD5420ACPZ). Output loop compliance is 0 V to AVDD-2.5 V.

The flexible serial interface is SPI and MICROWIRE compatible and can be operated in 3-wire mode to minimize the digital isolation required in isolated applications.

The device also includes a power-on-reset function ensuring that the device powers up in a known state and an asynchronous CLEAR pin which sets the output to the low end of the selected current range.The total output error is typically ±0.1% FSR.

Feature

• 12/16-Bit Resolution and Monotonicity
• Current Output Ranges: 4-20mA, 0-20mA 0r 0-24mA
  -0.1% typ Total Unadjusted Error (TUE)
  -5ppm/°C Output Drift
• Flexible Serial Digital Interface
• On-Chip Output Fault Detection
• On-Chip Reference (10 ppm/°C Max)
• Asynchronous CLEAR Function
• Power’ Supply (AVDD) Range
  – 10.8V to 60 V; AD5410/AD5420ACPZ
  – 10.8V to 40V; AD5410/AD5420AREZ
• Output Loop Compliance to AVDD- 2.5 V
• Temperature Range: -40°C to +85°C
• TSSOP and LFCSP Packages

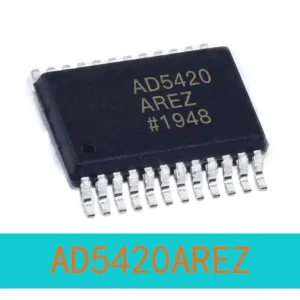

Appearance
