AD9398 Display Interface IC Chip

AD9398(HDMI™ Display Interface)

Introduction

The AD9398 offers a high definition multimedia interface(HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP).

The AD9398 contains a HDMI 1.0-compatible receiver and supports all HDTV formats (up to 1080p) and display resolutions up to SXGA (1280 x 1024 @ 75 Hz). The receiver features an intrapair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays can now receive encrypted video content. The AD9398 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP 1.1 protocol.

Fabricated in an advanced CMOS process, the AD9398 is provided in a space-saving 100-lead, surface-mount, Pb-free,plastic LQFP and is specified over the 0°C to 70°C temperature range.

Feature

HDMI interface
– Supports high bandwidth digital content protection
– RGB to YCbCr 2-way color conversion
– 1.8 V/3.3 V power supply
– 100-lead, Pb-free LQFP
– RGB and YCbCr output formats
Digital video interface
– HDMI 1.1, DVI 1 .0
– 150 MHz HDMI receiver
– Supports high bandwidth digital content protection(HDCP 1.1)
Digital audio interface
– HDMI 1.1-compatible audio interface
– SPDIF (IEC90658-compatible) digital audio output
– Multichannel I2S audio output (up to 8 channels)

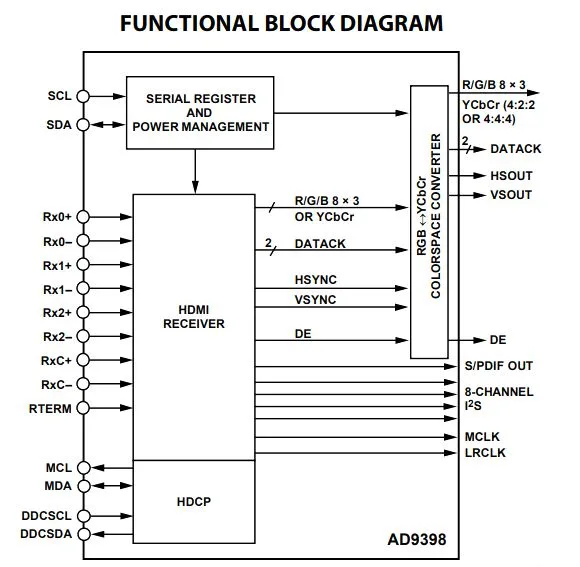

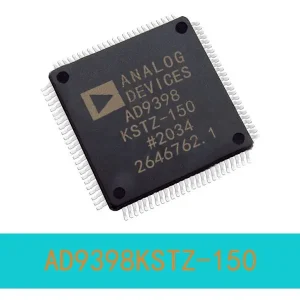

Appearance
