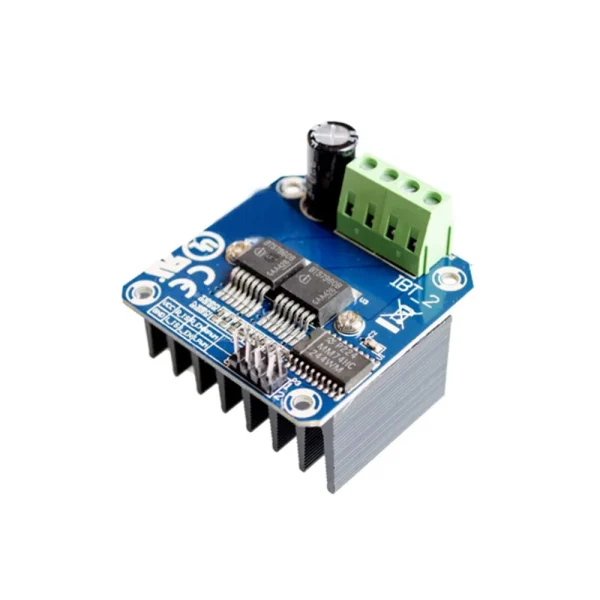

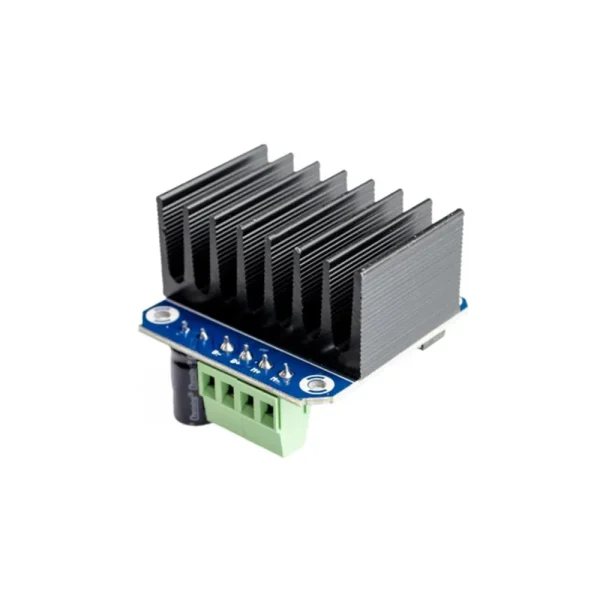

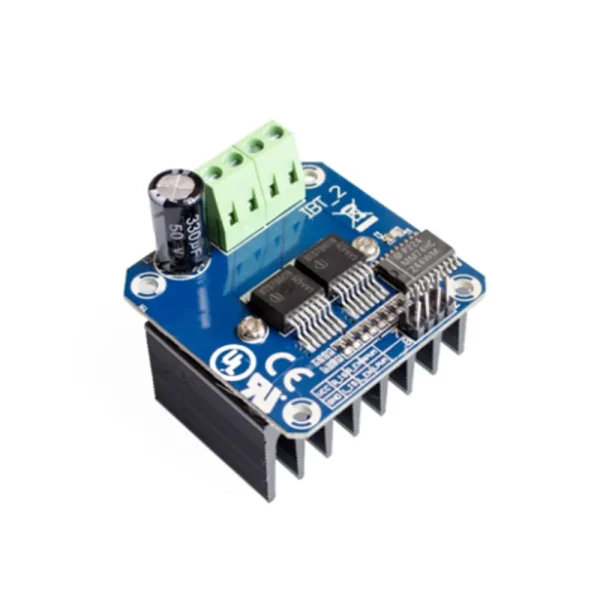

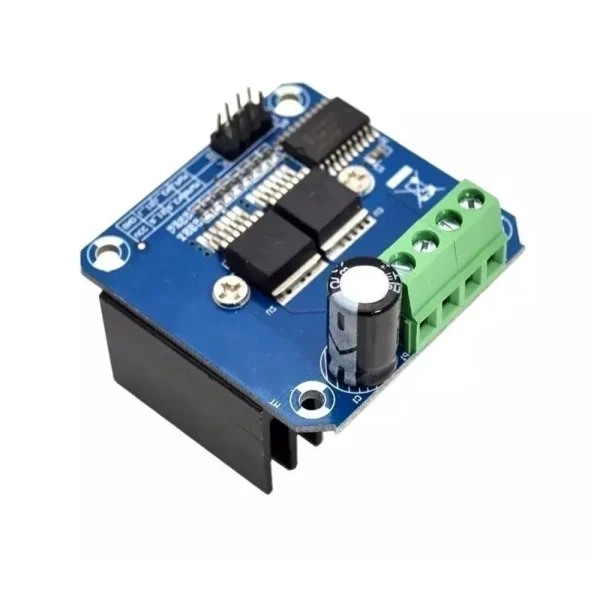

BTS7960 High-power Motor Drive Module

The BTS7960 High-power Motor Drive Module is a powerful H-bridge motor driver designed to control DC motors with high current demands. It is built using Infineon’s BTS7960 half-bridge driver chips, making it capable of handling large currents, typically up to 43A, and operating at voltages up to 24V. This module is widely used in robotics, electric vehicles, and industrial control systems where precise and reliable motor control is required.

Specification

• Double BTS7960 large current (43 A) H bridge driver;
• 5V isolate with MCU, and effectively protect MCU;
• 5V power indicator on board;
• voltage indication of motor driver output end;
• can solder heat sink;
• Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
• isolation chip 5 V power supply (can share with MCU 5 V);
• Size: 4 * 5 * 1.2 cm;
• Able to reverse the motor forward, two PWM input frequencies up to 25kHZ;
• two heat flows passing through an error signal output;
• isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
• the supply voltage is 5.5V to 27V;
