DRV8833 2Channel DC Motor Driver Module

DRV8833 2Channel DC Motor Driver Module （1.5A 3V-10V）

Description

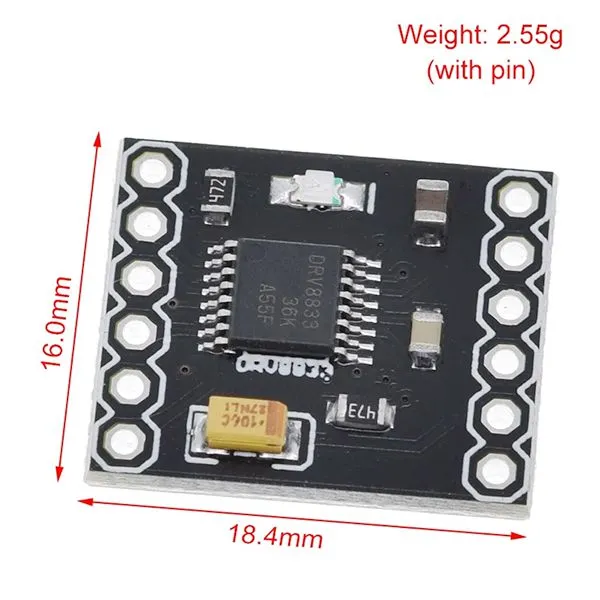

• Size:18.4*16mm
• Input voltage:3V-10V
• Single H-Bridge output current:1.5A(It Can drive two DC motor)
• Overcurrent protection:YES
• Short circuit protection:YES
• Undervoltage lockout:YES
• Overheating protection:YES
• With a low-power sleep mode

Features

• ULT PIN:mode set.Low level is sleep mode
• OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
• OUT3,0UT4:2-channel H-bridge controlled by IN3/IN4
• EEP PIN:Output protection.Default no need to connect.
• VCC:3-10V

Instructions for use

• EEP low for the sleep mode ( need to disconnect the moduleafter the J1 short contact,the module default point for theconnection and connected to high)
• OUT1, OUT2 is 1 way H bridge , the corresponding control is IN1,IN2
• OUT3, OUT4 is the 2nd road H bridge，the corresponding control is IN3 , IN4
• ULT for the protection of the alarm output，overheating and overcurrent protection in the work of the output low-level alarm signal
