Dual Voltage Step Up Module(±5V ±9V ±12V ±15V)
$0.65
Quick RFQ

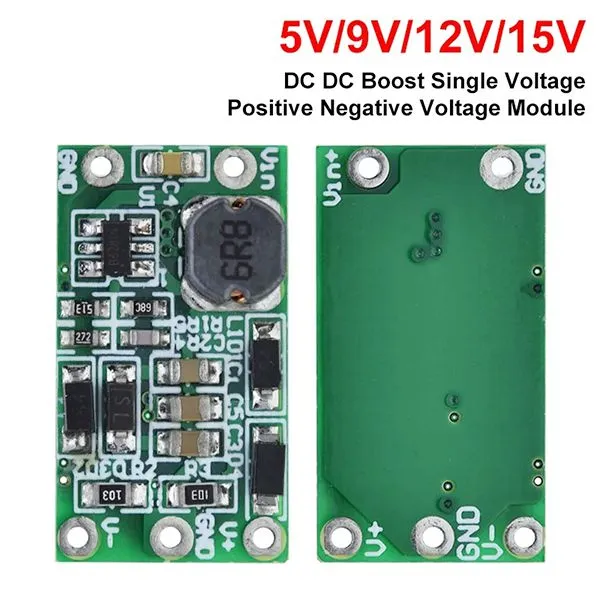

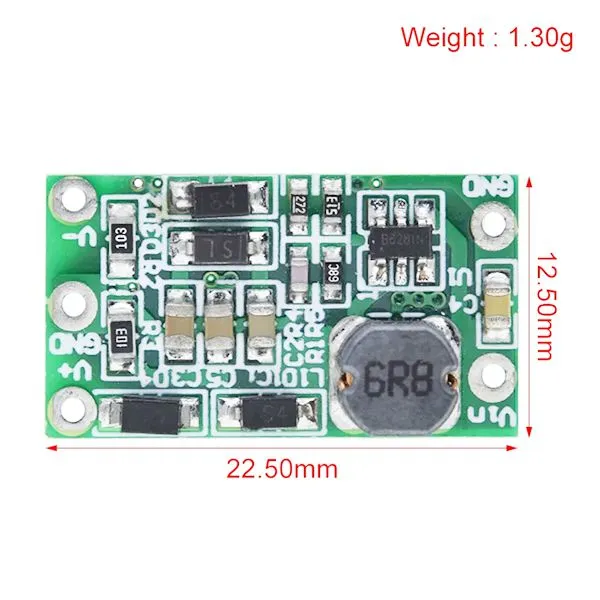

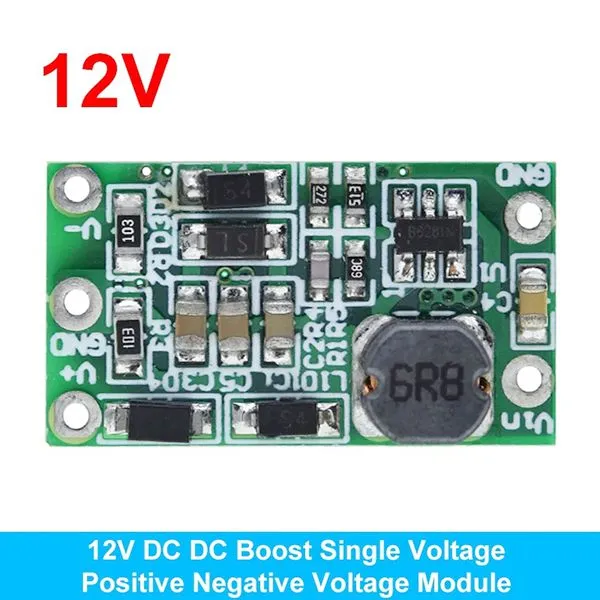

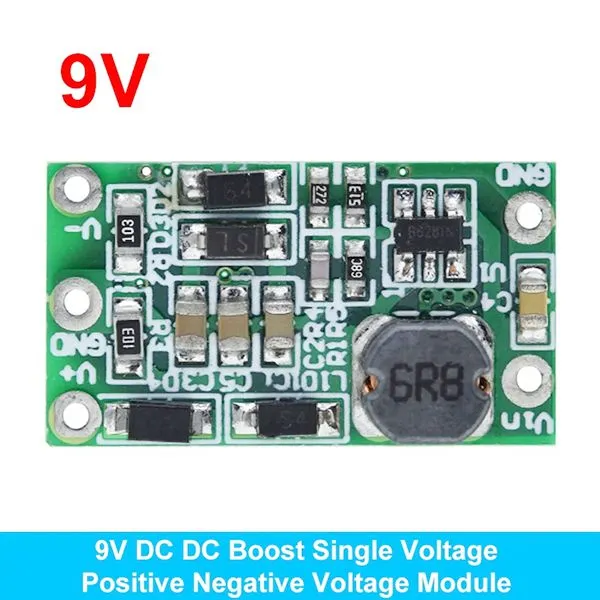

Dual Voltage Step Up Module(±5V ±9V ±12V ±15V/Single Voltage to Positive Negative Voltage)
Parameters
| Output voltage | Input voltage range | output current | Efficiency |
| ±5 | 3V-4.5V | 100mA | ≥85% |
| ±9 | 3V-8V | 100mA | ≥85% |
| ±12 | 3V-11V | 100mA | ≥85% |
| ±15 | 3V-14V | 100mA | ≥85% |

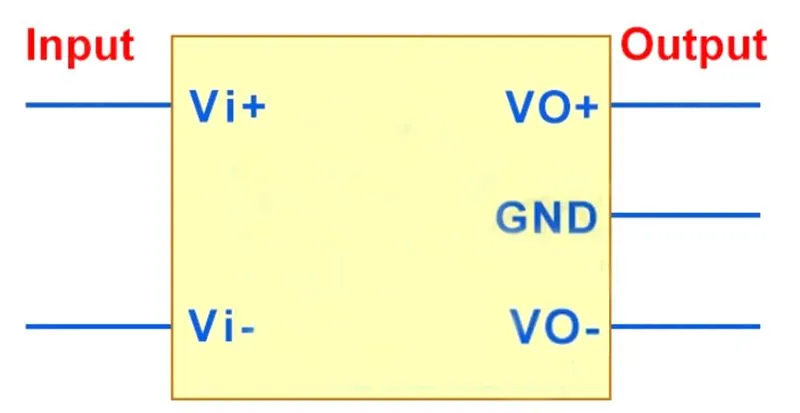

Wiring Diagram
Single Power Supply Positive Negative Dual Power Supply

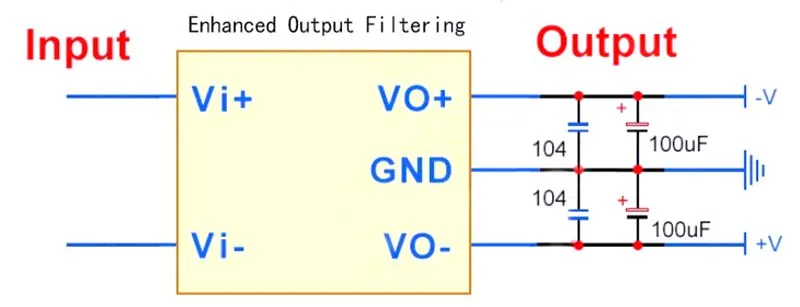

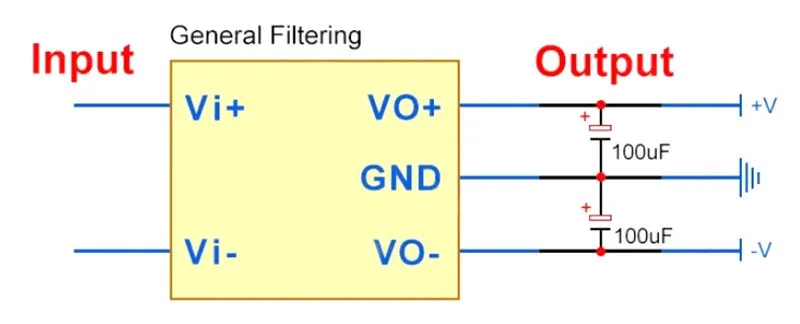

Increase the output filter,usually without adding additional capacitors to achieve a more ideal output filter, when necessary, you can increase the output filter capacitor, as follows:
| Series | 12V, 15V, 5V, 9V |
|---|
