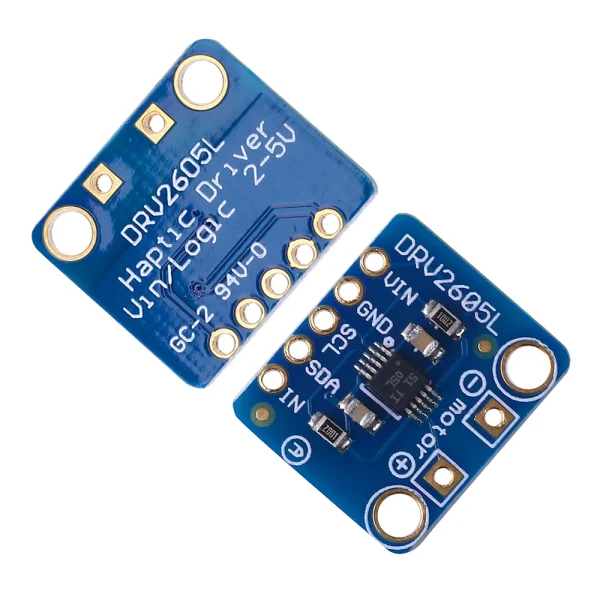

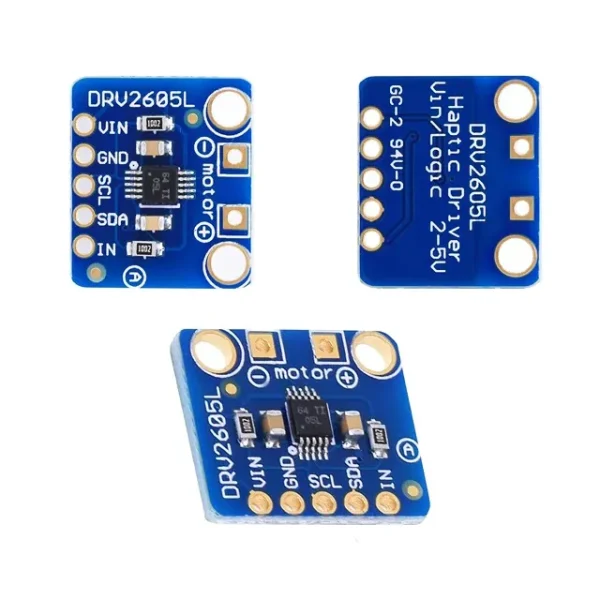

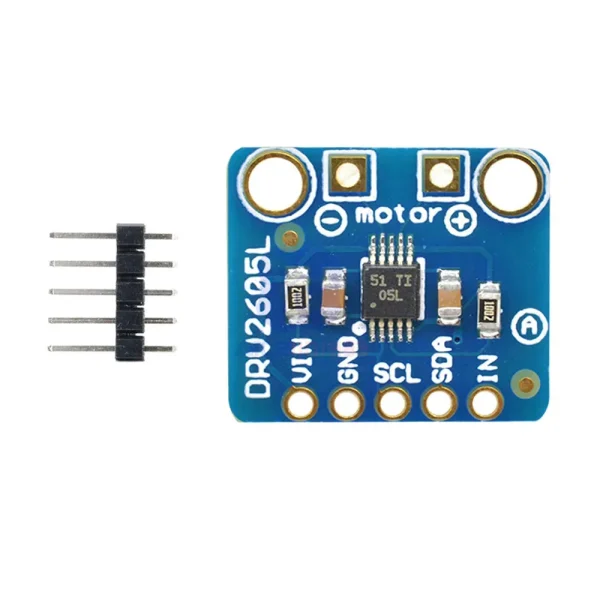

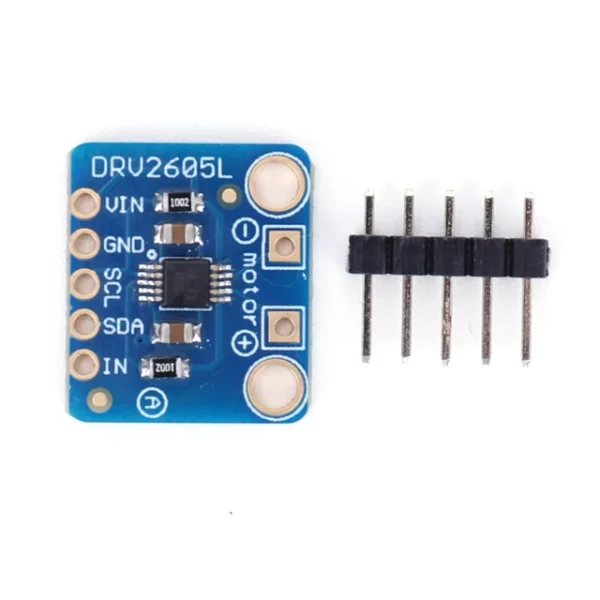

Haptic Motor Driver – DRV2605L
$9.50
The Haptic Motor Driver breakout board features six pins to power the sensor and I2C bus. Additionally, a microcontroller that supports I2C is required to communicate with the DRV2605L and relay the data to the user using vibration.
Quick RFQ
The DRV2605L can drive two different types of motors, ERM and LRA. It is important to know, however, that the default firmware for the DRV2605L is set for use with ERM-type motors. We have created an Arduino library that makes the DRV2605L easy to use with six different ERM effects and one LRA effect.
- Flexible Haptic and Vibration Driver for both ERM and LRA type motors
- I2C-Controlled Digital Playback Engine
- Audio to Vibe
- PWM input with 0–100% Duty-Cycle Control Range
- Hardware Trigger Input
- Built-in Waveform Sequencer and Trigger
| Series | Haptic Motor Driver – DRV2605L |
|---|
TC6501P125VCTTR SOT-23A-5
$4.00 Select options This product has multiple variants. The options may be chosen on the product page

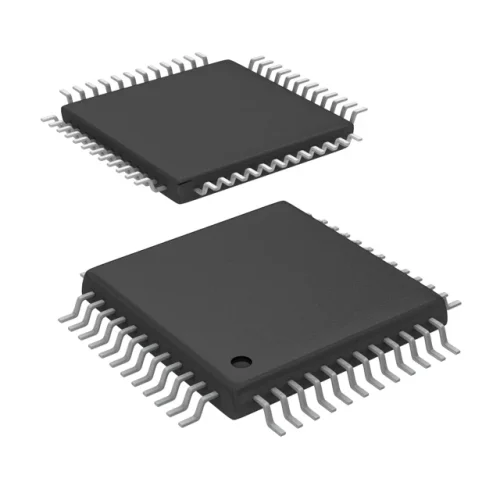

TSC2301IPAG TQFP-64
$30.00 Select options This product has multiple variants. The options may be chosen on the product page
11Types x 5 Pieces, Total 55 Pieces 16V Plug in Resettable Fuse 0.5A 1A 2A 3A 4A 5A 6A 7A 8A 9A 10A

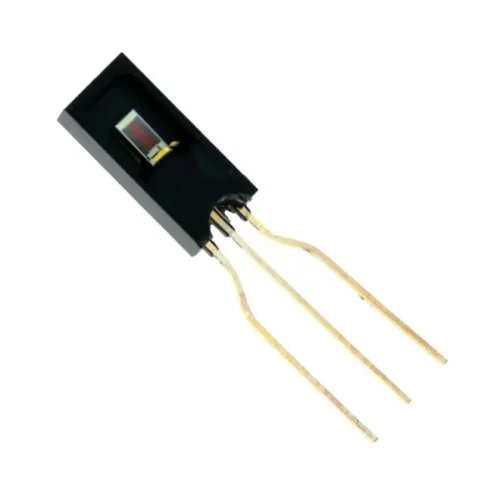

HIH-4000-003
$19.00 Select options This product has multiple variants. The options may be chosen on the product page
LIS2DH12TR LGA-12(2×2)
$1.00 Select options This product has multiple variants. The options may be chosen on the product page

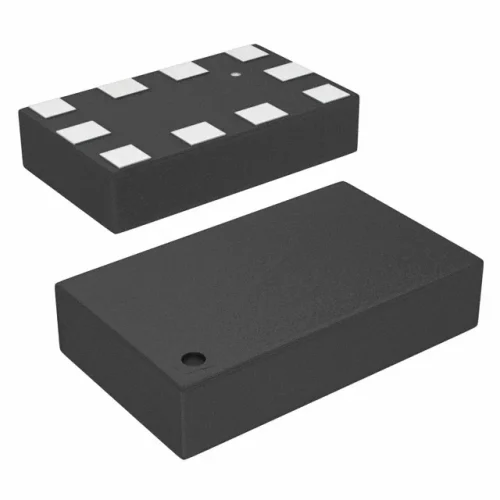

LY3200ALHTR LGA-10(3×5)
