ISO7740 IC Chip

ISO7740 （High-Speed, Robust-EMC Reinforced and Basic Quad-Channel Digital Isolators）

Introduction

The ISO774x(IS07740) devices are high-performance, quad-channel digital isolators with 5000 VRMS (DW package) and 3000 VRMS(DBQ package) isolation ratings per UL 1577. This family includes devices with reinforced insulation ratings according to VDE, CSA,TUV and CQC. The IS07741B device is designed for applications that require basic insulation ratings only.

The ISO774x devices provide high electromagnetic immunity and low emissions at low power consumption,while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. These devices come with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption.‘The IS07740 device has all four channels in the same direction.If the input power or signal is lost, default output is high for devices without suffix F and low for devices with suffix F.

Features

• 100 Mbps data rate
• Robust isolation barrier:
  — > 100-year projected lifetime at 1500 VRMs working voltage
  –Up to 5000 VRMS isolation rating
  — Up to 12.8 kV surge capability
  –±100 kV/µs typical CMTI
• Wide supply range: 2.25V to 5.5V
• 2.25-V to 5.5-V level translation
• Default output high (ISO774x) and low(ISO774xF) options
• Wide temperature range: -55°C to 125°C
• Low power consumption, typical 1.5mA per channel at 1 Mbps
• Low propagation delay: 10.7 ns typical(5-V Supplies)
• Robust electromagnetic compatibility (EMC)
  — System-level ESD, EFT, and surge immunity
  –±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
  — Low emissions
• Wide- SOIC (DW-16) and QSOP (DBQ-16) package options
• Automotive version available: ISO774x-Q1
• Safety-related certifications:
  –DIN VDE V 0884-11:2017-01
  –UL 1577 component recognition program
  –CSA, CQC, and TUV certifications

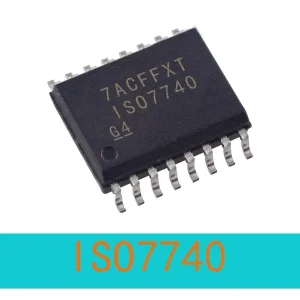

Appearance
