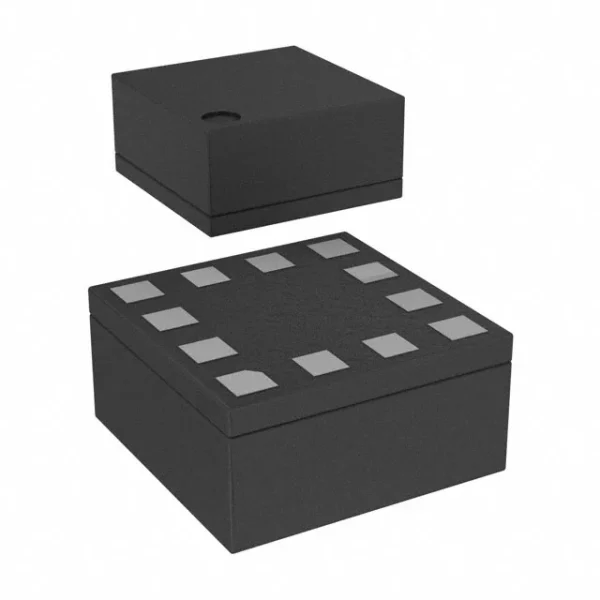

KX132-1211 LGA-12(2×2)
$15.00
Quick RFQ
| Specification | Value / Condition |
|---|---|
| Model | KX132-1211 |
| Manufacturer | ROHM Semiconductor (Kionix) |
| Axes | 3-axis accelerometer |
| Full-Scale Ranges | ±2 g, ±4 g, ±8 g, ±16 g (selectable) |
| Resolution | 16-bit |
| Noise Density | ~130 µg/√Hz (typical) |
| Supply Voltage (VDD) | 1.7 V to 3.6 V |
| Interface | I²C or SPI |
| Output Data Rate | Up to ~25,600 Hz (user selectable) |
| Embedded Features | Advanced Data Path (ADP) with filters + RMS engine; Wake-Up/Back-to-Sleep detection; Free-fall; Tap/Double-Tap; Orientation detection |
| FIFO Buffer | 512 bytes |
| Operating Temperature Range | –40 °C to +105 °C |
| Package | LGA 12-pin, 2.0 × 2.0 × 0.9 mm |
| Series | KX132-1211 LGA-12(2×2) |
|---|
TMCS1100A4QDT SOIC-8
$5.00 Select options This product has multiple variants. The options may be chosen on the product page

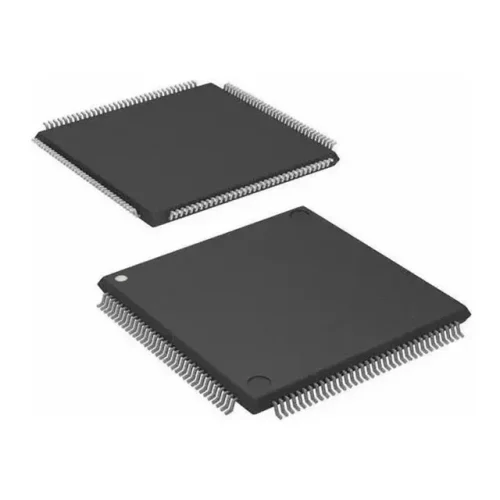

EPM7256SRI208-10N QFP-208
