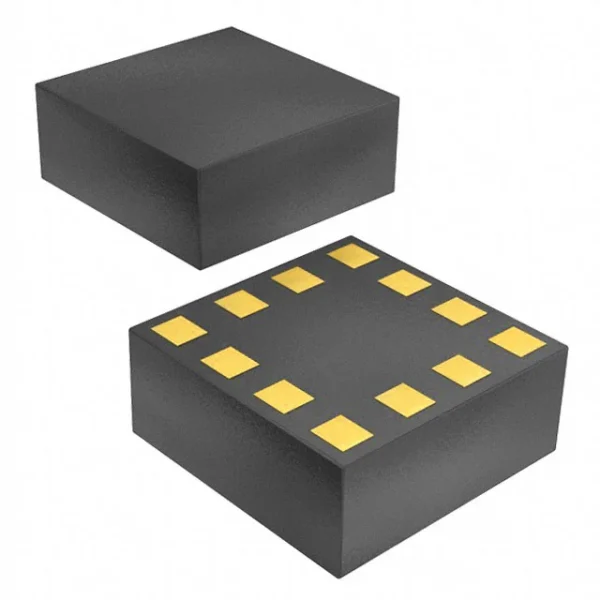

KXTJ3-1058-01 LGA-12(2×2)
$1.00
Quick RFQ
| Parameter | Specification |
|---|---|
| Manufacturer | Kionix / ROHM |
| Part Number | KXTJ3-1058-01 (same family as KXTJ3-1058) |
| Package | 12-pin LGA, 2 mm × 2 mm |
| Sensing Axes | 3-axis (X, Y, Z) |
| Full-Scale Ranges | ±2 g / ±4 g / ±8 g / ±16 g |
| Interface | I²C (digital) |
| Bandwidth / ODR | 0.39 Hz – 800 Hz |
| Supply Voltage | 1.71 V – 3.6 V |
| Resolution | 8-bit / 12-bit / 14-bit (similar to KXTJ3-1057 spec) |
| Current Consumption | ~155 µA in high-resolution mode (from KXTJ3-1057 spec) |
| Operating Temperature | –40 °C to +85 °C |
| Features | Adjustable bandwidth, low-pass filter, wake-up function |
| Shock / Durability | High shock survivability (hermetically sealed design, typical for Kionix) |
| Series | KXTJ3-1058-01 LGA-12(2×2) |
|---|
IRA-S210ST01
$3.00 Select options This product has multiple variants. The options may be chosen on the product page

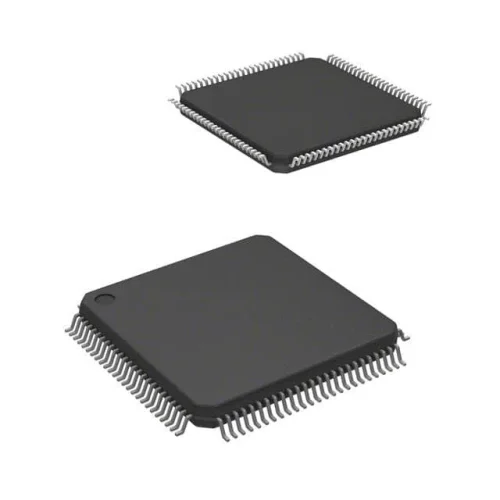

MCU STM32F407VET6 LQFP100(14x14x05P)
$5.00 Select options This product has multiple variants. The options may be chosen on the product page

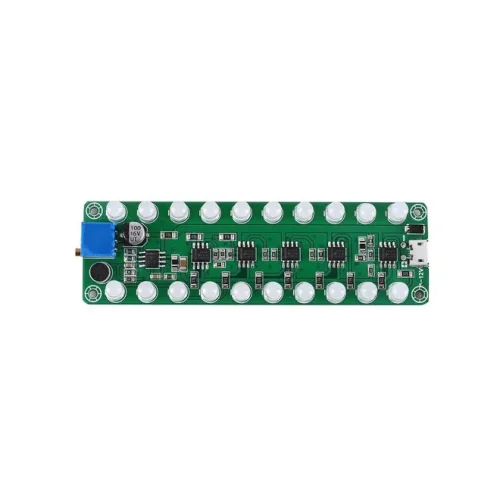

DC 5V 12V RGB LED Sound Control Sensor Module
$5.27 Select options This product has multiple variants. The options may be chosen on the product page
AR0135CS2C00SUEA0-DRBR IBGA-63
$53.00 Select options This product has multiple variants. The options may be chosen on the product page
BU21021GUL-E2 VCSP50L2-24
$2.00 Select options This product has multiple variants. The options may be chosen on the product page

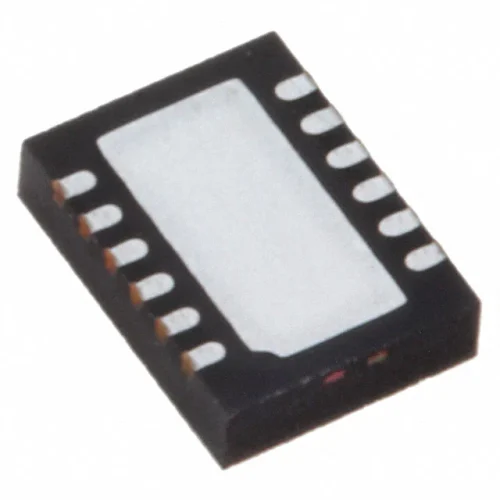

PD70200ILD-TR DFN-12
