KY-003 A3144 Standard Hall Magnetic Sensor Module

KY-003 A3144 Standard Hall Magnetic Sensor Module Works with Arduino Boards

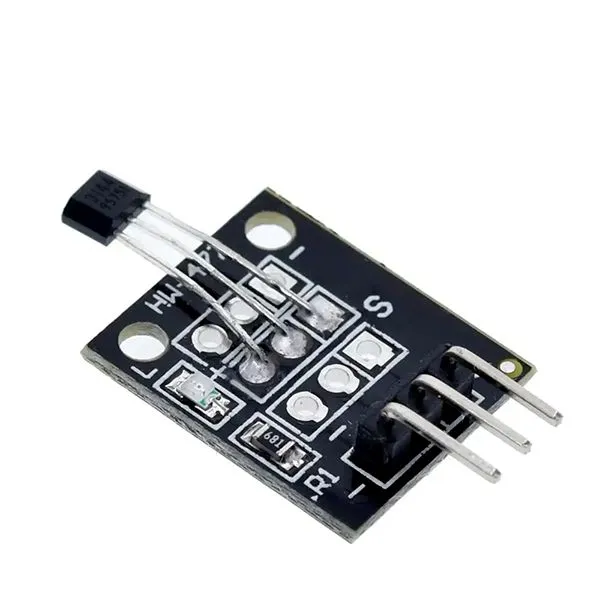

KY-003 A3144 Hall Magnetic Sensor

Features

1. KY-003 A3144 series, hall switch integrated circuit using hall efect principle, uses the semiconductor integrated technology manufacturing magnetic suscepibility of the circuit, it is by the voltage regulator, hall voltage generator, differential amplfier, schmidt triggers, temperature compensation and the open collector output stage circuit composed of magnetic sensitive sensor circuit, its input for the magnetic induction intensity, the output is a digital voltage signal.
2. Hall magnetic sensor module and a digital 13 interface with LED build a simple circuit, to produce a magnetic flasher .Use digital 13 interface with the LED, the Hall magnetic sensor connected to the force plate number 3 ARDUINO interface. When the Hall magnetic sensor to a magnetic field signal, LED lights on, versa lights off.
