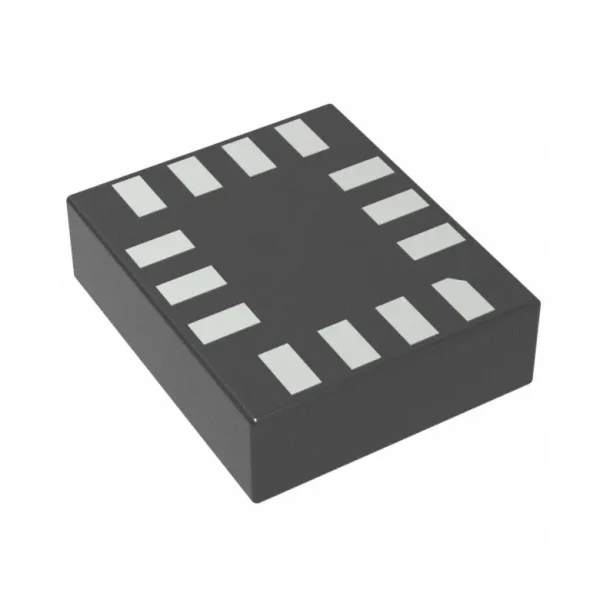

LSM6DS3USTR LGA-14(2.5×3)
$8.00
Quick RFQ
| Specification | Value / Condition |
|---|---|
| Model | LSM6DS3USTR |
| Package Type & Size | LGA-14, 2.5 mm × 3.0 mm × ~0.83 mm |
| Function | 6-axis IMU: 3-axis accelerometer + 3-axis gyroscope |
| Accelerometer Full-Scale Ranges | ±2 g, ±4 g, ±8 g, ±16 g |
| Gyroscope Full-Scale Ranges | ±125 °/s, ±250 °/s, ±500 °/s, ±1000 °/s, ±2000 °/s |
| Supply Voltage (Analog) | 1.71 V – 3.60 V |
| I/O Supply Voltage | Approx. 1.62 V (digital I/O independent) |
| Typical Current Consumption | ~0.9 mA in combo high-performance mode |
| FIFO Buffer | Embedded smart FIFO (typical size in similar device: ~8 kB) |
| Interface | I²C or SPI |
| Operating Temperature Range | –40 °C to +85 °C |
| Key Features | Always-on low-power mode, step/pedometer detection, free-fall/wake-up, 6D/4D orientation |
| Series | LSM6DS3USTR LGA-14(2.5×3) |
|---|
CAN-BUS Shield MCP-2515
$14.99 Select options This product has multiple variants. The options may be chosen on the product pageSALE
500 Pieces 1/4W 0.25 Watt 1% Tolerance 10K ohm Metal Film Resistor
Original price was: $8.99.$8.09Current price is: $8.09. Select options This product has multiple variants. The options may be chosen on the product pageMT6501CT-ADD SOP8
$3.00 Select options This product has multiple variants. The options may be chosen on the product pageTMCS1107A2UQDR SOIC-8
$7.00 Select options This product has multiple variants. The options may be chosen on the product page

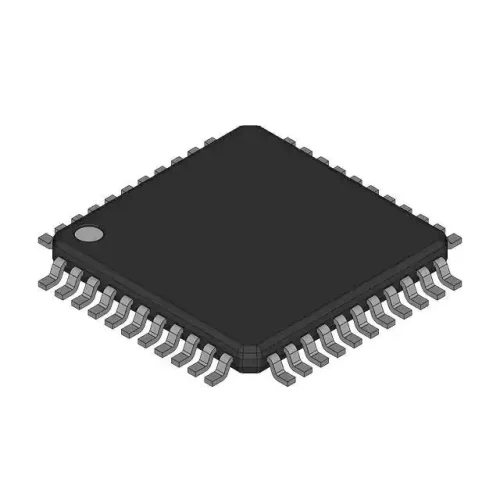

MR86F001DI/044PT LQFP-44
