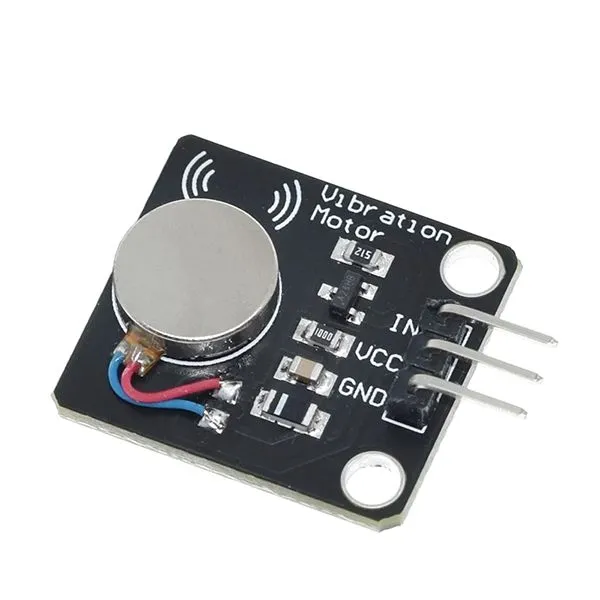

PWM Vibration Motor Switch Sensor Module

High and Low Level Vibration Mini Motor Module For Arduino(5V)

Description

This is a small PWM Vibration Motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone.

Parameters

• Rated voltage: 5.0VDC
• Operating voltage: 3.0-5.3VDC
• Rated speed: 9000 rpm minimum
• Rated current: up to 60 mA
• Starting current: up to 90 mA
• Starting voltage: DC3.7V
• Insulation resistance: 10Mohm
• Compatibilit: Compatible with UNO R3/ Mega2560
• Great for DIY projects

Specifications

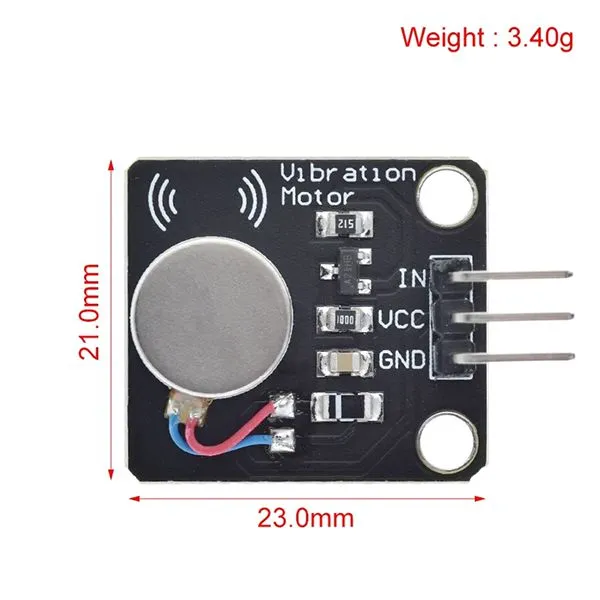

• Size: 21*23mm
• Fixed hole: 3mm
• Pitch: 15mm
• Voltage: 5V
• Port: Digital quantity
• Motor: 10mm diameter, 2.7mm thickness, flat motor
• Drive: MOS tube high level trigger, low level cutoff
• Platform: Ard-uino, MCU

Features

• High-quality mobile phone vibration motor, the vibration effect is obvious
• Mos amplification driver, can directly pass Ard-uino Digital port control
• The vibration intensity of the motor can be controlled by PWM
• This module can easily convert electrical signals to mechanical vibration.
• Suitable for the production of vibration-sensitive interactive products, wearable smart device vibration reminders, etc.
