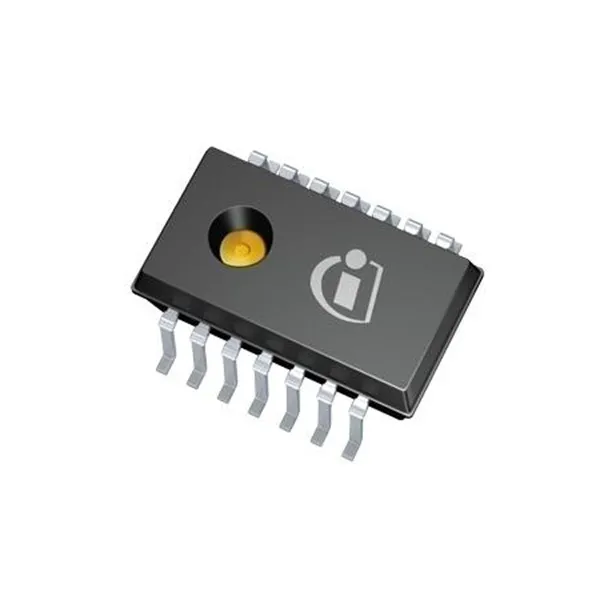

SP270-25-256-0 DSOSP-14
$8.00
Quick RFQ
| Specification | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number | SP270-25-256-0 |
| Package / Case | DSOSP-14 (board-mount module) |
| Device Type | Board mount pressure sensor (PMS) |
| Pressure Sensor Range | 100 kPa to 1300 kPa (~14.5 psi to ~188.5 psi) |
| Pressure Sensor Type | Absolute pressure sensing element |
| Embedded MCU | 8-bit 8051-compatible microcontroller |
| On-Chip Flash | 6 KB flash memory |
| On-Chip RAM | 256 bytes RAM |
| Temperature Sensor | Integrated temperature sensor |
| Voltage Sensor | Integrated supply voltage sensor |
| Power Supply Range | 1.9 V to 3.6 V |
| Standby Current | < 0.7 µA (ultra-low) |
| Operating Temperature Range | –40 °C to +125 °C |
| Communication / Interface | I²C (supports custom protocols via embedded MCU) |
| Features | Integrated pressure/temperature/voltage sensing, microcontroller, low-power modes |
| RoHS Status | RoHS compliant (lead-free) |
| Series | SP270-25-256-0 DSOSP-14 |
|---|
STM32H735VGT6 LQFP-100
$226.00 Select options This product has multiple variants. The options may be chosen on the product page
VD6283TX45/1 BGA-6
$2.00 Select options This product has multiple variants. The options may be chosen on the product pageFC-L01D2A2
$15.00 Select options This product has multiple variants. The options may be chosen on the product page
XC7Z030-L2FBG676I FCBGA-676
$738.00 Select options This product has multiple variants. The options may be chosen on the product page
TSC2004IRTJR QFN20-EP
$7.00 Select options This product has multiple variants. The options may be chosen on the product page

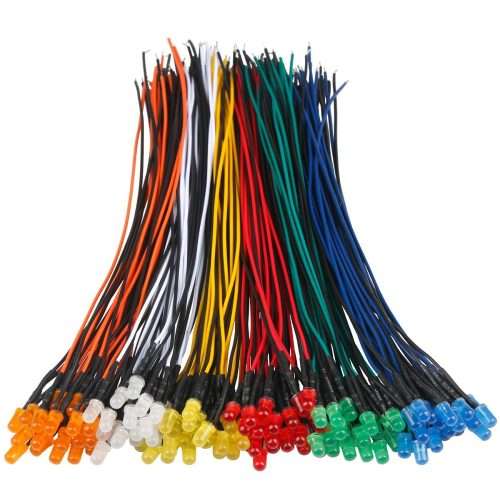

120pcs 12V LED Lights Emitting Diodes, Pre Wired 7.9 Inch DC 12 Volt 5mm LED (6 Colors x 20pcs) Assorted Kit Diffused
