TJA1050 CAN The Controller Interface Module

TJA1050 CAN The Controller Interface Module （ Bus Driver Interface）

Introduction

• The TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.
• The part can provide different transmit performance for the bus and different receive performance for the CAN controller.
• The device is the successor to the PCA82C250 high-speed CAN transceiver, which offers important improvements in the following areas: CANH and CANL are ideally matched to reduce electromagnetic emissions to a minimum.

Features

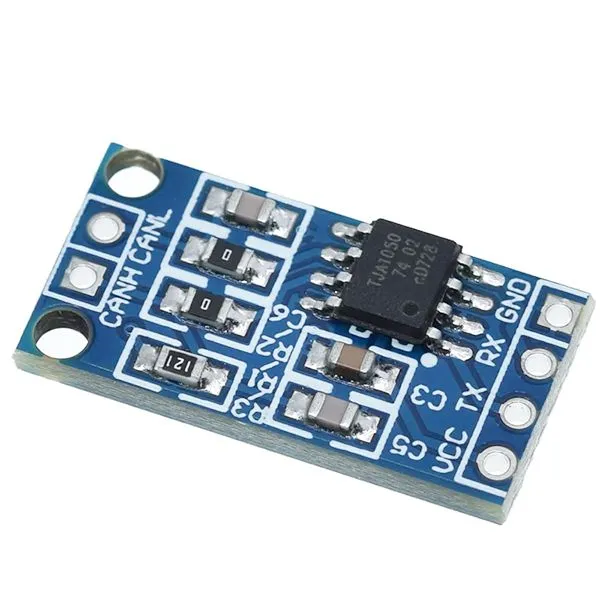

• The onboard TJA1050 CAN controller interface chip
• The chip pin has been commonly used derivation, convenience for the connection
• Pin 5v power supply
• The PCB board size: 22mm x 11mm

Interface Definition

• TXD: Send data input
• GND: Ground
• VCC: power supply
• RXD: Receive data input
• CANL: Low level CAN bus
• CANH: High level CAN bus

Diagram
