TMCS1107A3UQDRQ1 SOIC-8
$8.00
Quick RFQ
| Specification | Value |
|---|---|
| Model | TMCS1107A3UQDRQ1 |
| Manufacturer | Texas Instruments |
| Device Type | Galvanically isolated Hall-effect current sensor (AEC-Q100 automotive grade) |
| Package / Case | 8-lead SOIC (surface mount) |
| Supply Voltage Range | 3 V – 5.5 V |
| Supply Current (Max) | ~6 mA |
| Output Type | Ratiometric analog voltage |
| Sensitivity (Typ) | 200 mV/A |
| Signal Bandwidth | ~80 kHz |
| Response Time (Typ) | ~6.5 µs |
| Linearity (Typ) | ±0.5 % |
| Total Error | ±1 % typical, ±3 % max over –40 °C to +125 °C |
| Offset Error (Typ) | ~40 mA |
| Offset Drift (Typ) | ~0.2 mA/°C |
| Operating Temperature Range | –40 °C to +125 °C |
| Polarization | Unidirectional current sensing |
| Current Measurement Type | AC/DC current sensing |
| Isolation Rating | 3 kV RMS basic isolation; 420 V lifetime working voltage |
| Number of Channels | 1 |
| Mounting Type | Surface mount (SMT) |
| Series | TMCS1107A3UQDRQ1 SOIC-8 |
|---|

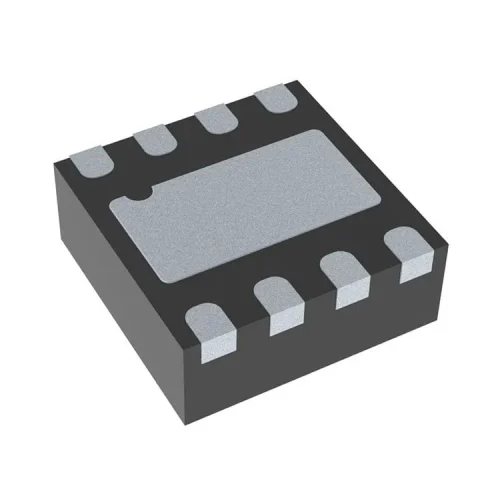

STTS2004B2DN3F TDFN-8-EP(2×3)
$3.00 Select options This product has multiple variants. The options may be chosen on the product pageSALE
600 Pack 1/4W 1% Metal Film Resistors Assortment Pack (10Ω – 1MΩ) 30 Values
Original price was: $12.33.$10.48Current price is: $10.48. Select options This product has multiple variants. The options may be chosen on the product pageMCP9501PT-115E/OT SOT-23-5
$3.00 Select options This product has multiple variants. The options may be chosen on the product page

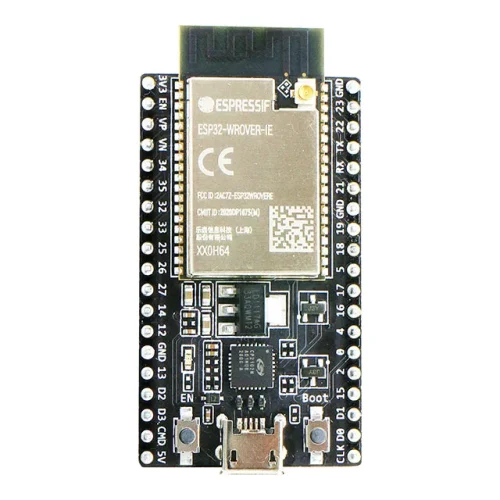

ESP32 DevKitC v4 Development board
$11.39 Select options This product has multiple variants. The options may be chosen on the product page
26PCDFG6G SIP-4
$87.00 Select options This product has multiple variants. The options may be chosen on the product page

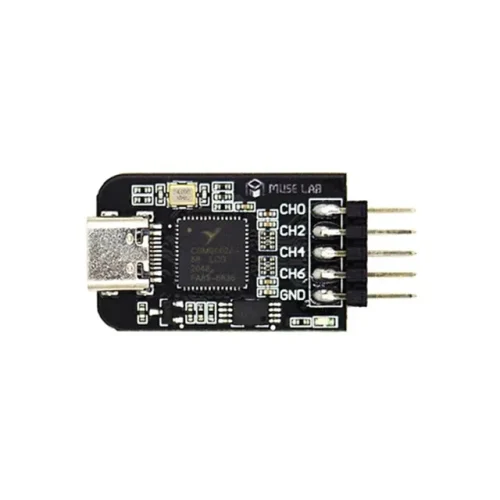

Nanodla Mini Logic Analyzer Type-C
