ADXL313WACPZ-RL7 LFCSP-32(5×5)
$11.00
Quick RFQ
| Specification | Value / Condition |
|---|---|
| Model | ADXL313WACPZ-RL7 |
| Manufacturer | Analog Devices |
| Function | 3-axis digital MEMS accelerometer |
| Package / Size | 32-lead LFCSP with exposed pad, ≈5 mm × 5 mm body |
| Full-Scale Ranges | ±0.5 g, ±1 g, ±2 g, ±4 g (selectable) |
| Resolution | 10-bit at ±0.5 g; up to 13-bit at ±4 g |
| Sensitivity (typical) | 1024 LSB/g in full-resolution mode |
| Noise Density | ~150 µg/√Hz (X/Y axes typical) |
| Output Type | Digital output via I²C or SPI (3-wire or 4-wire) |
| Supply Voltage Range | 2.0 V to 3.6 V |
| Operating Temperature Range | –40 °C to +105 °C |
| Operating Current (typical) | ~170 µA at data rate >100 Hz |
| Bandwidth / Output Data Rate | 3.125 Hz up to 1.6 kHz (user selectable) |
| Shock Survivability | 10,000 g |
| Series | ADXL313WACPZ-RL7 LFCSP-32(5×5) |
|---|
TPS23756PWP HTSSOP-20
$4.00 Select options This product has multiple variants. The options may be chosen on the product page
ATtiny85 USB Development Board Mini Arduino
$1.00 – $2.80 Select options This product has multiple variants. The options may be chosen on the product page

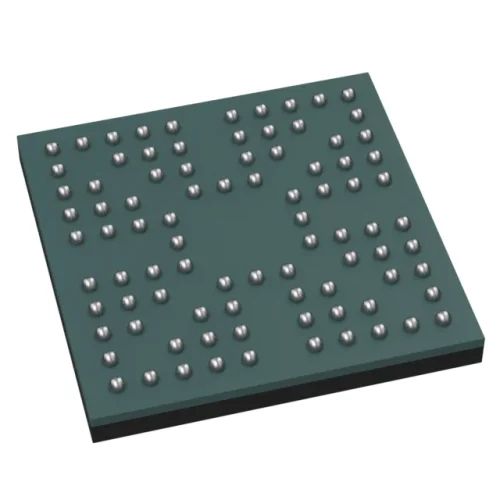

ATMXT640U-CCUR023 UFBGA-88
$39.00 Select options This product has multiple variants. The options may be chosen on the product page

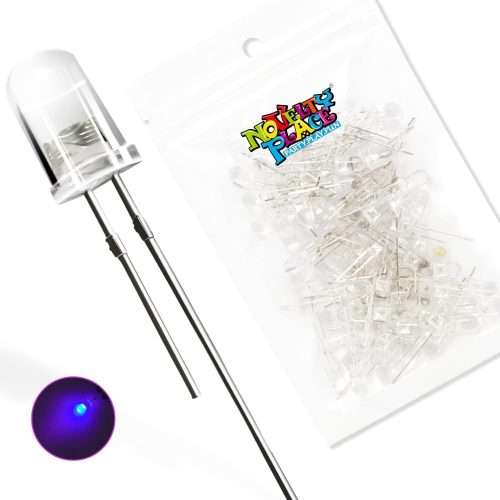

100pcs 5mm Clear LED Diode Lights – Transparent DC 3V 20mA Light Emitting Diode LED Bulbs Purple Light

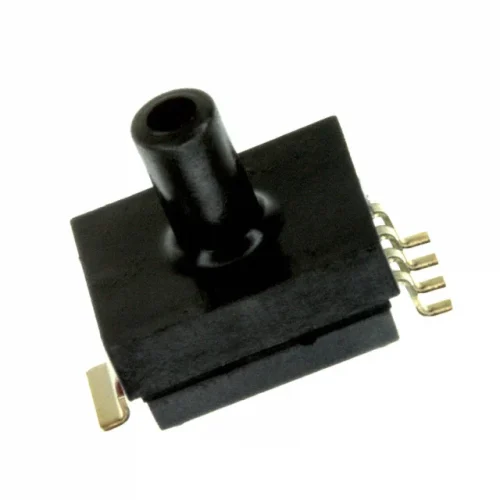

MPXM2102AS SO-5
