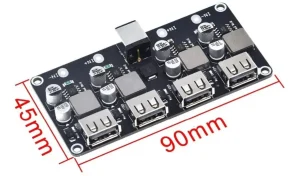

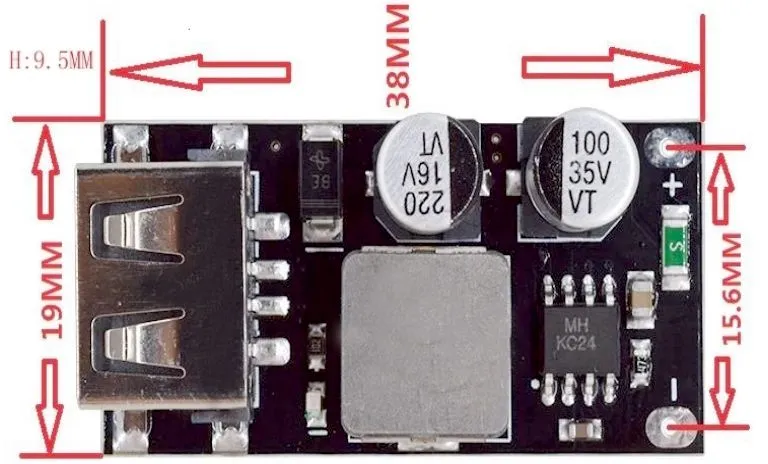

USB Fast Charging Buck Converter Module

USB Fast Charging Buck Converter Module: 6-32V Input, 5V Output

Features

• Input voltage range: 6V-32V
• Output voltage: default 5V, automaticaly adjust between 3-12V after triggering fast charge
• Output power: up to 24W (5V/3. 4A.9V/2.5A. 12V/2A. etc)
• Output voltage cable compensation function
• Conversion efficiengy: 90%-97%
• Support multiple fast charging protocols
• Input overvoltage and undervoltage protection
• Input overcurrent protection
• Output overcurrent, short circuit protection
• Machine over temperature protection

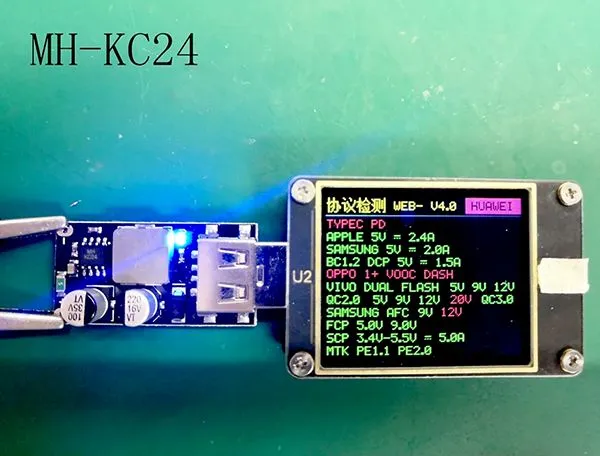

Support fast charge agreement

• Support DCP protocol, BC1.2. Apple. Samsung protocol
• Support Huawei Fast Charge Protocol FCP/SCP
• Support Huawei Fast Charge Protocol AFC
• Support Spreadtrum Fast Charge Protocol SFCP
• Support Qualcomm QC2.0 and 3.0
• Support MTK PE1.1/PE2.0

Applications

• Solar panel to mobile phone charging
• Car charging retrofit
• Driving recorder power supply
• Home power supply. smart plug modification
• Fast charge adapter

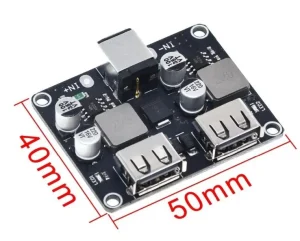

• Dual-port independent output, support protocol: QC2.0, QC3.0, MTK PE1.1/2.0, FOR Apple, FOR Samsung AFC,FOR Huawei FCP, FOR Spreadtrum SFCP
• Input voltage: DC 6~30V
• Output voltage: default 5V, adjust range 3~12V according to fast charging protocol
• Output capacity: single-port rated current 2.4A, rated power 24W
• Protection measures: Output overvoltage protection, limit the output voltage does not exceed 13V (in the case of chip failure); input with a fuse.
