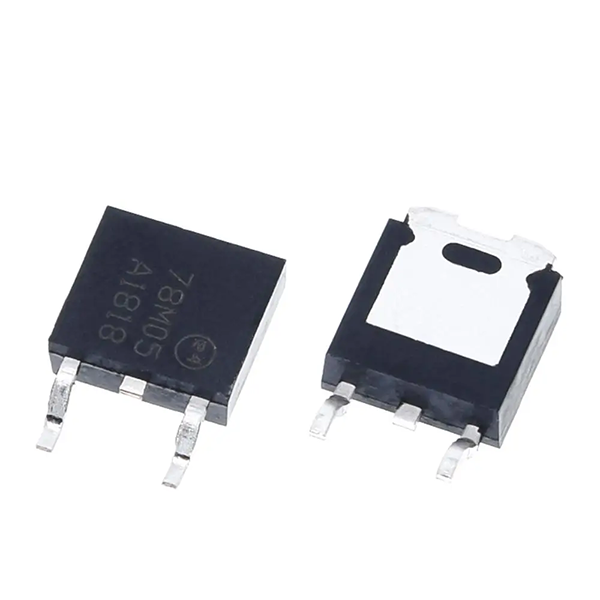

78M05 Linear Voltage Regulator DPAK
$0.68
10pcs New 78M05 TO252 7805 750mA
Quick RFQ
Product Information
The 78M05 voltage regulator has built-in thermal overload protection to prevent device damage due to excessive junction temperature. It also contains internal short-circuit protection that limits the maximum output current, as well as safe-area protection for the pass transistor that reduces short-circuit current when the voltage across the pass transistor increases.
Although internal power dissipation is automatically limited, the maximum junction temperature of the device must remain below 125°C to meet the datasheet specification. If reliable performance is to be obtained, sufficient heat sinking must be provided to ensure that this limit is not exceeded under worst-case operating conditions (maximum input voltage and load current).
Specifications
- IC Package: TO-252 SMD DPAK
- Type: Fixed Voltage Regulator
- Output voltage: 5V
- Output Current in Excess of 0.5 A
- Maximum DC input voltage: 35V, Dropout voltage: 2V
- Internal short Circuit Current Limiting
- Internal Thermal Overload Protection
- Suitable for CMOS, TTL and the other digital IC’s power supply.
Applications
- Voltage Regulator circuit.
- Motor driver circuit.
- Voltage stepdown
- battery charger circuits.
- Solar power supply.
- Current regulator
- Reverse bias projection Circuit
78M05 Pins Explanation
The table below contains the pins of the 78M05 regulator IC, function of the pin and where to connect the pins.
| No. | PINs | Function | Description |
| 1 | Input | Input Voltage(7V-35V) | Here is where the positive unregulated Voltage to be regulated is feed on. |
| 2 | GND | GND(0V) | The is the neural pin of the IC. It is connected to the neutral point on the circuit. |
| 3 | Output | Output(5V) | This is where the regulated 5V is taken from. The voltage at this point is stable. |
The above table indicates that the 78M05 regulator has an input voltage range of 7V – 37V, and it produces an output voltage of 5V. You might wonder about the storage of the remaining voltage; however, the 78M05 is not an energy storage component. Instead, a voltage regulator dissipates the difference between the input and output voltages as heat. The regulator generates more heat with higher input voltages.
Connect the 78M05 voltage regulator to the radiator to dissipate the heat emitted by the voltage regulator during operation and prevent the voltage regulator from burning due to high temperature. By limiting the input voltage of the IC to 2-3 times higher than the output voltage, this reduces the heat dissipated by the regulator.
Appearance
| Length | 78M05(10 pieces) |
|---|

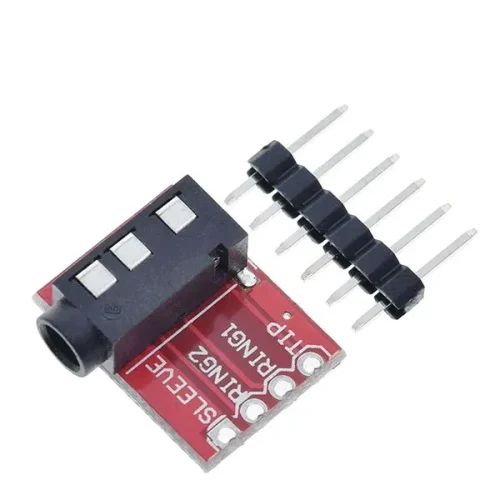

TRRS MP3 Jack Breakout Professional Module
$0.30 Select options This product has multiple variants. The options may be chosen on the product page
HC-SR501 PIR Motion Sensor Module
$0.78 – $1.00 Select options This product has multiple variants. The options may be chosen on the product page
28BYJ-48 4 phase Stepper Motor+ULN2003 Driver Board
$0.85 – $2.00 Select options This product has multiple variants. The options may be chosen on the product page
CDCVF2505 Driver IC Chip
$7.10 Select options This product has multiple variants. The options may be chosen on the product page
BQ2018 Power Minder IC Chip
$12.23 Select options This product has multiple variants. The options may be chosen on the product page
TJA1050 CAN The Controller Interface Module
$0.55 Select options This product has multiple variants. The options may be chosen on the product page
Related products
IRF1010 IRF1404 IRF1405 IRF1407 IRF2807 IRF3710 IRFL3705 IRLB8721 IRLB3034 Transistor
$1.73 – $2.95 Select options This product has multiple variants. The options may be chosen on the product page

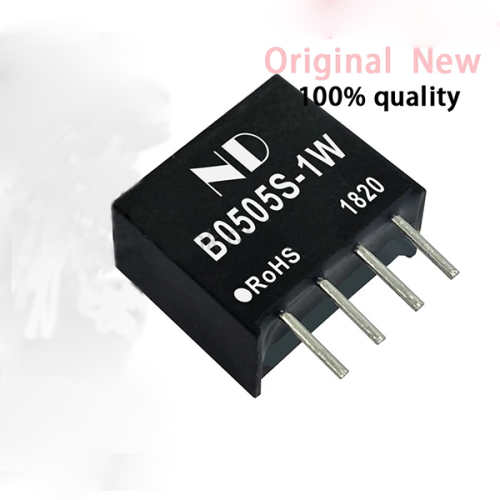

BS Series Isolated DC-DC CONVERTER Power Supply Module
$0.47 – $1.45 Select options This product has multiple variants. The options may be chosen on the product page
LM2596S-5.0 LM2596S-ADJ LM2596S LM2596 2596 TO-263
$1.67 Select options This product has multiple variants. The options may be chosen on the product page

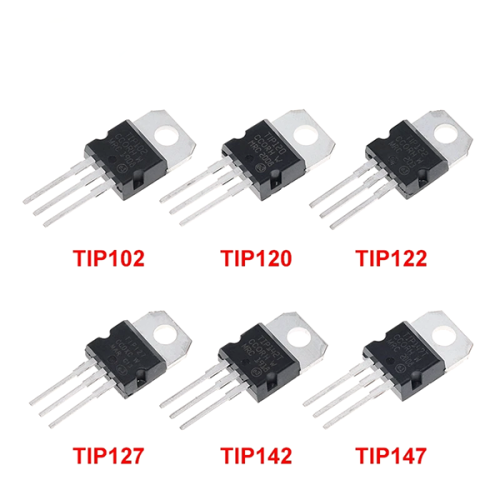

Transistor Series – TIP102, TIP120, TIP122, TIP127, TIP142 and TIP147
