AD5447 Multiplying DAC IC Chip

AD5447（Dual 12-Bit, High Bandwidth,Multiplying DACs with Parallel Interface）

Introduction

The AD5428/AD5440/AD5447 are CMOS, 8-，10-, and 12-bit,dual-channel, current output digital-to-analog converters (DACs),respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suited to battery-powered and other applications.

As a result of being manufactured on a CMOS submicron process,they offer excellent 4-quadrant multiplication characteristics,with large signal multiplying bandwidths of up to 10 MHz.

The DACs use data readback, allowing the user to read the contents of the DAC register via the DB pins. On power-up, the internal register and latches are filled with 0s, and the DAC outputs are at zero scale.The applied external reference input voltage (VREF) determines the full-scale output current. An integrated feedback resistor (RFB) provides temperature tracking and full-scale voltage output when combined with an external I-to-V precision amplifier.

The AD5428 is available in a small 20-1ead TSSOP package, and the AD5440/AD5447 DACs are available in small 24-1ead TSSOP packages.

Feature

• 10 MHz multiplying bandwidth
• INL of ±0.25 LSB @ 8 bits
• 20-lead and 24-lead TSSOP packages
• 2.5 V to 5.5 V supply operation
• ±10V reference input
• 21.3 MSPS update rate
• Extended temperature range: -40°C to +125°C
• 4-quadrant multiplication
• Power-on reset
• 0.5 μA typical current consumption
• Guaranteed monotonic
• Readback function
• AD7528 upgrade (AD5428)
• AD7547 upgrade (AD5447)

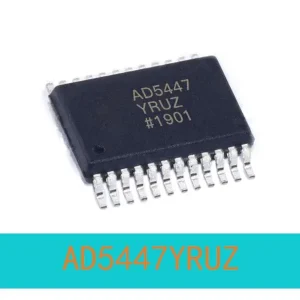

Appearance
