Product Information

Introduction

Technical engineers, after-sales business engineers, are you still worried about the collocation of 3.3V, 5V, 12V and 24V power supply? This DC-DC USB Boost Power Regulator can easily solve the problem that you are equipped with a variety of power supplies.

This converter is very convenient to use, as long as you plug in USB or micro USB, you can easily output 1.2V to 24V adjustable voltage, Power 3W, very suitable for technical engineers research and development, debugging instruments, after-sales engineers on business maintenance to power instruments, very convenient.

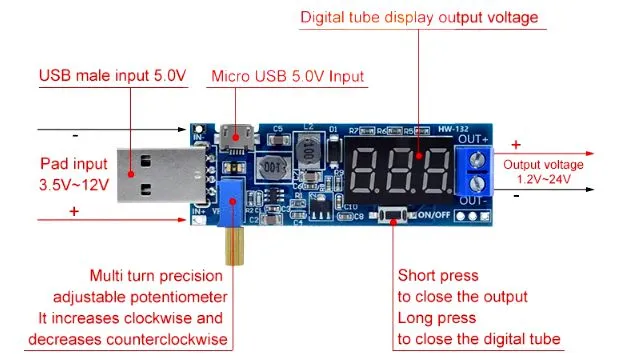

Module Highlights

• Simple to operate—connect via USB or micro USB to achieve an adjustable voltage output ranging from 1.2V to 24V.
• Turn off the output with one key
• Adjust with multi-turn precision adjustable potentiometer
• Memory of the system state, restorable upon power-on to the previous state.

Features

1.One button to turn off the output;,
2. Supply ON/OFF display screen;
3. Support low power mode;
4. Support sleep mode;
5 .Support both standard USB and Micro USB and pads input voltage;
6.Potentiometer with rotating handle.

Parameters

1. Input voltage: DC 3.5-12V ;
2. Output voltage: DC 1.2-24V;
3. Output power:

• Input 1.2-2V, Output Power within 2W
• Input 2V-20V, Output Power within 3W
• Input 20V-24V, Output Power within 2.5W

4. Display: 3Bit digital tube display;
5. Size: 80*20*14mm.

Use Steps

1.Input voltage from Standard USB or Micro USB or VIN+’ and “VIN-‘;
2.Turn ON display screen;
3.Adjust potentiometer to get the required voltage;
4.Connect load.

Applications

• Electronic engineers, R&D and debugging: Provide power to circuit boards, sensors and other electronic devices to facilitate circuit debugging and testing.
• Instrument maintenance: Provide power for portable instruments to facilitate after-sales engineers traveling for maintenance.
• DIY enthusiasts: Power small electronic production projects, such as LED lights, small motors, etc.

Please Note

It is not a high power supply, please use it within the power range.

Package Include

1pcs DC-DC USB Boost Power Regulator Module

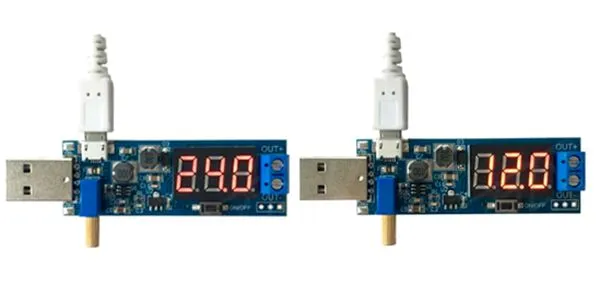

Product Display
