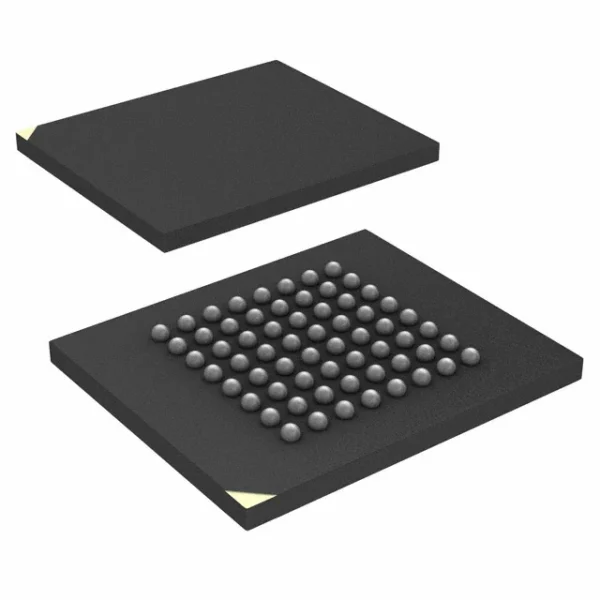

M29W256GH70ZS6E FBGA-64
$60.00
Quick RFQ
| Specification | Value |
|---|---|
| Manufacturer | Micron Technology |
| Memory Family | M29W Parallel NOR Flash |
| Device | M29W256GH |
| Package | FBGA-64 (11 × 13 mm) |
| Memory Density | 256 Mbit |
| Memory Organization | 32M × 8 / 16M × 16 |
| Memory Type | NOR Flash |
| Interface | Parallel Asynchronous |
| Data Bus Width | x8 / x16 |
| Operating Voltage | 2.7 V to 3.6 V |
| Access Time | 70 ns |
| Operating Temperature | -40°C to +85°C |
| Sector Architecture | Uniform Sector Architecture |
| Sector Size | 128 KB |
| Program Mode | Word Programming / Write Buffer Programming |
| Write Buffer Size | 32 words |
| Endurance | 100,000 Program/Erase Cycles per Sector |
| Data Retention | 20 years (typical) |
| Security Features | CFI, Block Protection |
| Mounting Type | Surface Mount |
| Series | M29W256GH70ZS6E FBGA-64 |
|---|
ADXL313WACPZ-RL7 LFCSP-32(5×5)
$11.00 Select options This product has multiple variants. The options may be chosen on the product page

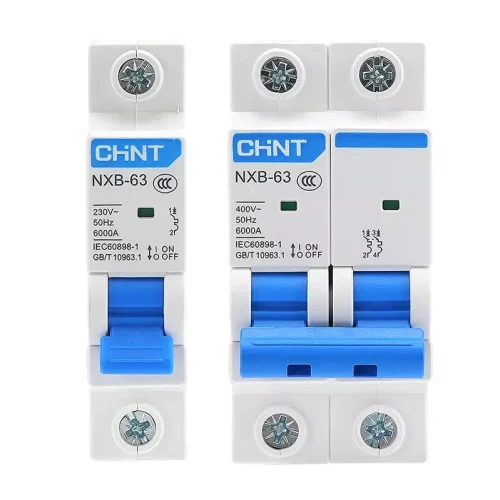

6Pcs NXB-63 CHINT Circuit Breaker 2Pole AC400V Miniature Circuit Breaker 9 Value
