ADXL313WACPZ-RL7 LFCSP-32(5×5)
$11.00
Quick RFQ
| Specification | Value / Condition |
|---|---|
| Model | ADXL313WACPZ-RL7 |
| Manufacturer | Analog Devices |
| Function | 3-axis digital MEMS accelerometer |
| Package / Size | 32-lead LFCSP with exposed pad, ≈5 mm × 5 mm body |
| Full-Scale Ranges | ±0.5 g, ±1 g, ±2 g, ±4 g (selectable) |
| Resolution | 10-bit at ±0.5 g; up to 13-bit at ±4 g |
| Sensitivity (typical) | 1024 LSB/g in full-resolution mode |
| Noise Density | ~150 µg/√Hz (X/Y axes typical) |
| Output Type | Digital output via I²C or SPI (3-wire or 4-wire) |
| Supply Voltage Range | 2.0 V to 3.6 V |
| Operating Temperature Range | –40 °C to +105 °C |
| Operating Current (typical) | ~170 µA at data rate >100 Hz |
| Bandwidth / Output Data Rate | 3.125 Hz up to 1.6 kHz (user selectable) |
| Shock Survivability | 10,000 g |
| Series | ADXL313WACPZ-RL7 LFCSP-32(5×5) |
|---|
Siemens 6ES7 223-1BL32-0XB0 Digital I/O Expansion Module(Price Negotiating!)
$99.99 Select options This product has multiple variants. The options may be chosen on the product page

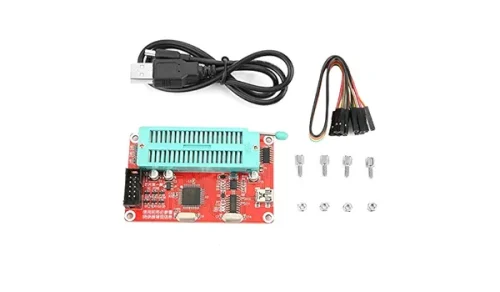

SP200SE/SP200S USB Chips Programmer Module
$17.09 Select options This product has multiple variants. The options may be chosen on the product page

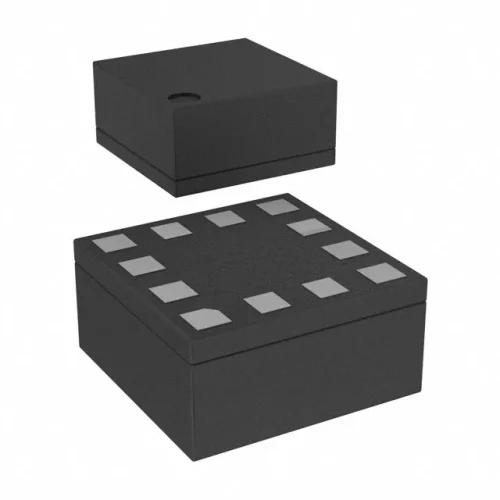

KX132-1211 LGA-12(2×2)
$15.00 Select options This product has multiple variants. The options may be chosen on the product page

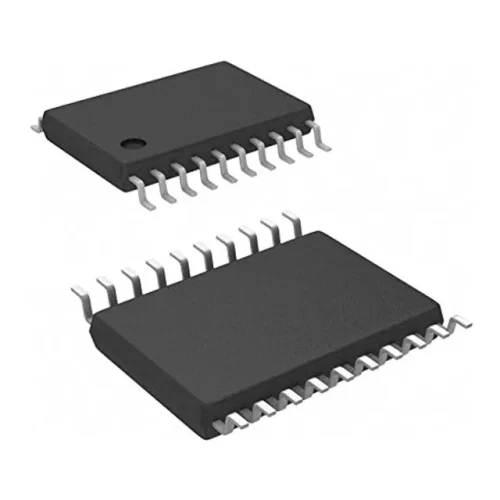

TSC2000IPWG4 TSSOP-20
$6.00 Select options This product has multiple variants. The options may be chosen on the product page
2Pcs 225A MEGA High Current Fuse – 225 Amp Bolt-on Fuse for Cars, Trucks, Construction Vehicles, Buses, Caravans
XC7Z035-L2FFG900I BGA-900
$285.00 Select options This product has multiple variants. The options may be chosen on the product page
Related products

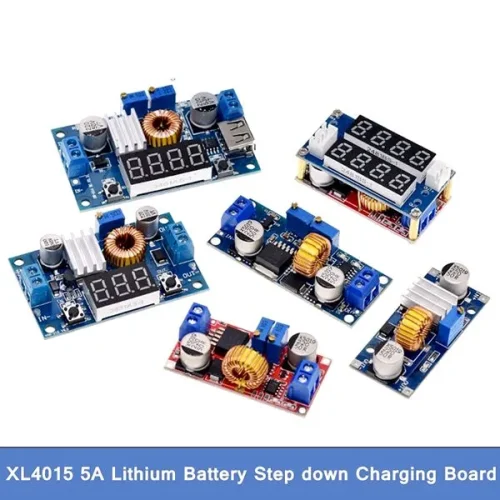

XL4015 Lithium Charger Step Down Module
$0.99 – $3.95 Select options This product has multiple variants. The options may be chosen on the product page

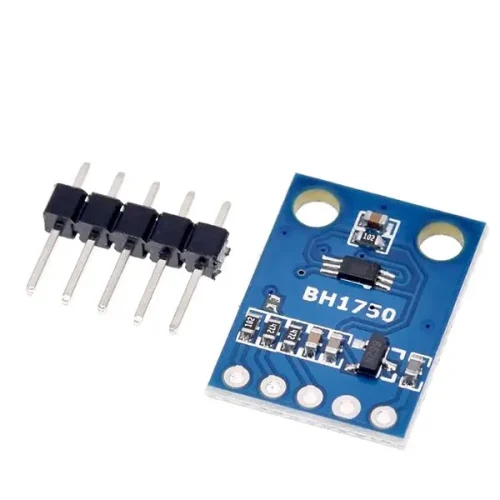

BH1750 GY-302 light intensity illumination module
