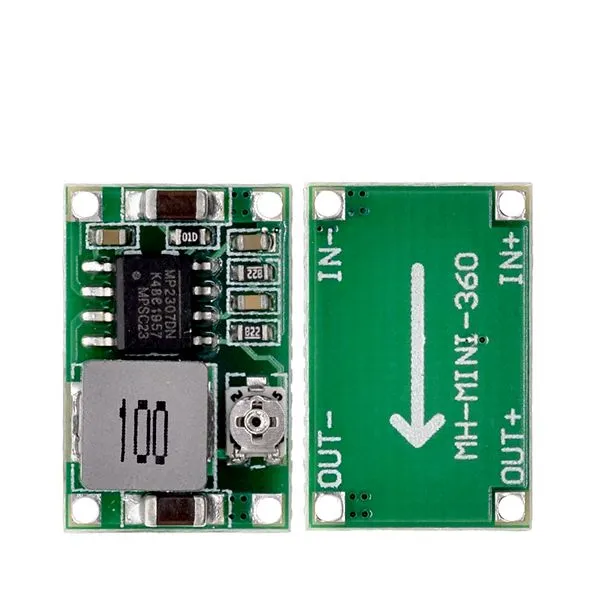

Mini360 DC-DC (3)_result

Mini360 DC-DC (1)_result

Mini360 DC-DC (5)_result

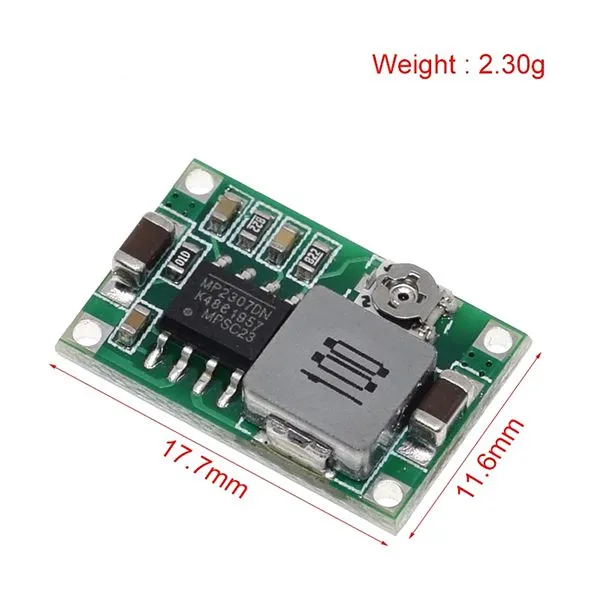

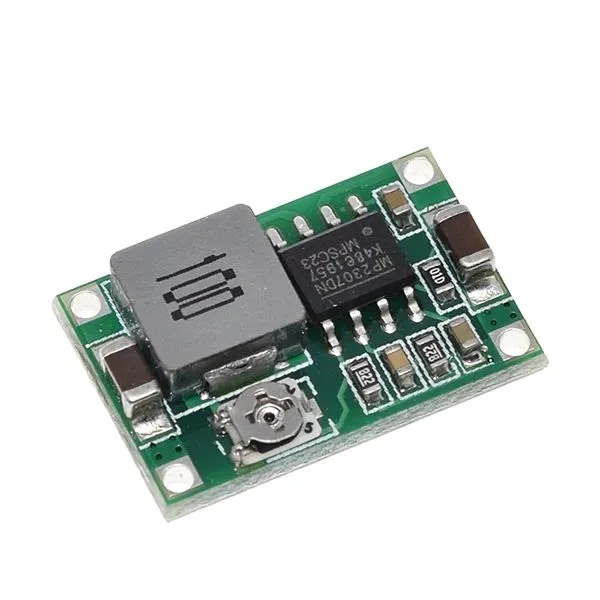

Mini360 Buck Step Down Module 4.75-23V to 1-17V

$0.30 – $2.95

Mini360 DC-DC HM Buck Converter Step Down Power Supply Module 4.75-23V to 1-17V 340KHz

SKU: N/A Categories: Module, Step-down Module

Quick RFQ

Mini360 Buck Step Down Module(DC-DC HM 4.75-23V to 1-17V 340KHz )

PARAMETER

Model Name:Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
Module Properties:non-isolated buck
Rectification:synchronous rectification
Input voltage:4. 75V-23V
Output voltage:1.0V-17V
Output Currentlowering the value of 3A, long 1.8A
Conversion efficiency:96% (maximum)
Switching Frequency:340KHz
Output rpple:30mV (no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Working temperature:-40℃ to +85℃

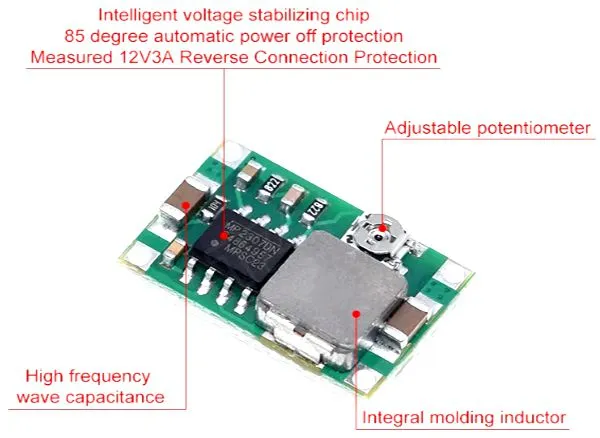

FEATURES

Use inegrally molded power inductor and synchronous rectifier control chip smaller and more efficient.

Series	10 PCS, 1pc, 5pcs

IRF640N IRF640NPBF TO-220 N-Channel MOSFET
$4.80 Select options This product has multiple variants. The options may be chosen on the product page
AD5410 Current Source DAC IC Chip
$4.45 Select options This product has multiple variants. The options may be chosen on the product page

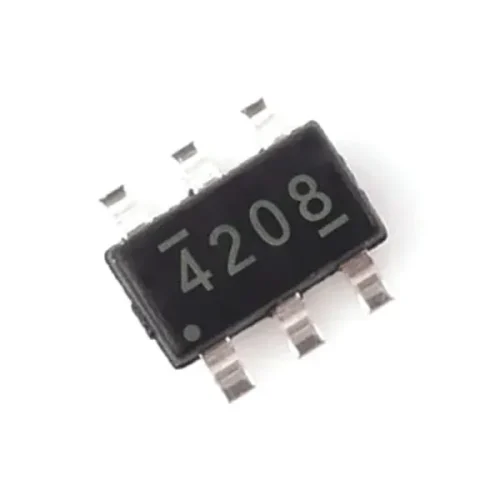

TPS564208 Step-Down Voltage Regulator IC Chip
$2.26 Select options This product has multiple variants. The options may be chosen on the product page

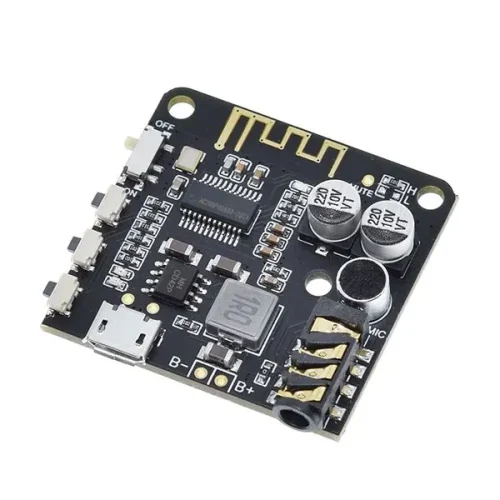

BT5.0 Audio PRO Decoder Module
