TMCS1100A1QDRQ1 SOIC-8
$7.00
Quick RFQ
| Specification | Value |
|---|---|
| Model | TMCS1100A1QDRQ1 |
| Manufacturer | Texas Instruments |
| Device Type | Precision isolated Hall-effect current sensor (AC/DC) |
| Package / Case | 8-SOIC surface mount |
| Supply Voltage Range | 3 V – 5.5 V |
| Supply Current (Max) | ~6 mA |
| Output Type | Ratiometric analog voltage proportional to current |
| Sensitivity (Typ) | ~50 mV/A (A1 variant) |
| Signal Bandwidth | ~80 kHz |
| Response Time (Typ) | ~6.5 µs |
| Linearity Error (Typ) | ±0.05 % |
| Total Error (Typ / Max) | ±0.4 % / ±0.9 % (–40 °C to +85 °C) |
| Offset Error (Typ) | ~7 mA |
| Offset Drift (Typ) | ~0.04 mA/°C |
| Operating Temperature Range | –40 °C to +125 °C |
| Continuous Current Rating | ~20–30 A (application dependent family spec) |
| Isolation Rating | ~3 kV RMS basic isolation; 600 V lifetime working voltage |
| Creepage / Clearance | ≥4 mm / ≥4 mm |
| Polarization | Bidirectional/unidirectional sensing supported (via VREF) |
| Mounting Type | Surface mount (SMT), SOIC-8 |
| Qualification | AEC-Q100 automotive grade (TMCS1100-Q1 series) |
| Series | TMCS1100A1QDRQ1 SOIC-8 |
|---|

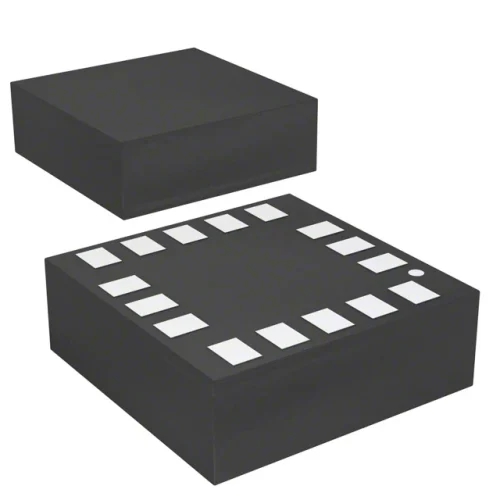

LSM6DS33TR LGA-16(3×3)
$16.00 Select options This product has multiple variants. The options may be chosen on the product page
(Price Negotiating!)SIEMENS 6ES7 134-4NB01-0AB0 6ES7134-4NB01-0AB0
$99.99 Select options This product has multiple variants. The options may be chosen on the product page
10 Colors 5mm LED Lamp Lights Assortment Emitting Diodes 100pcs

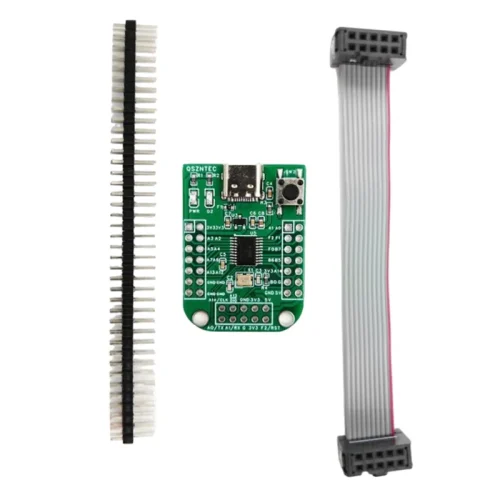

PY32F003 32-bit Development Board
$5.70 Select options This product has multiple variants. The options may be chosen on the product page

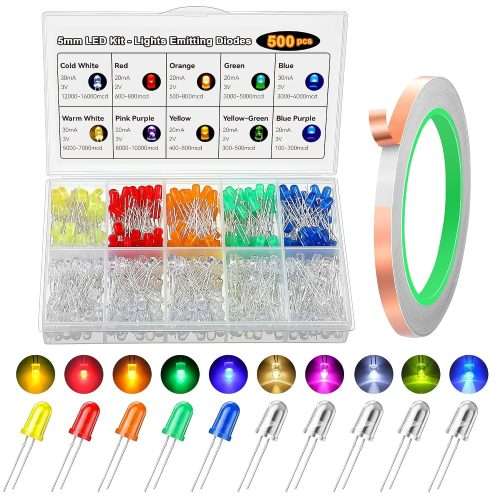

500pcs 10 Colors 5mm LED Light Diode, 20M Copper Foil Conductive Tape
