SOLD OUT![]()
TMCS1108A4BQDT SOIC-8
Quick RFQ
| Specification | Value |
|---|---|
| Model | TMCS1108A4BQDT |
| Manufacturer | Texas Instruments |
| Device Type | Galvanically isolated Hall-effect current sensor for AC/DC measurement with internal reference, ±100 V basic isolation |
| Package / Case | 8-lead SOIC surface mount |
| Supply Voltage Range | 3 V – 5.5 V |
| Supply Current (Max) | ~6 mA |
| Output Type | Ratiometric analog voltage |
| Sensitivity (Typ) | 400 mV/A (A4 variant) |
| Signal Bandwidth | ~80 kHz |
| Response Time (Typ) | ~6.5 µs |
| Linearity (Typ) | ±0.5 % |
| Total Error (Typ / Max) | ±1 % / ±3 % over −40 °C to +125 °C |
| Operating Temperature Range | −40 °C to +125 °C |
| Polarization | Bidirectional current sensing |
| Isolation Rating | ~100 V functional galvanic isolation |
| Number of Channels | 1 |
| Mounting Type | Surface mount (SMT) |
| Series | TMCS1108A4BQDT SOIC-8 |
|---|

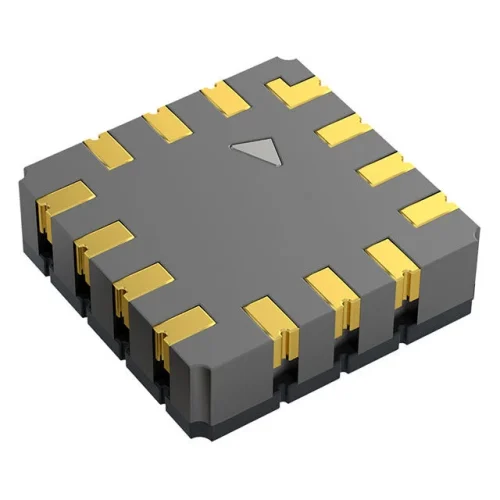

ADXL355BEZ-RL7 LCC-14(6×6)
$171.00 Select options This product has multiple variants. The options may be chosen on the product page
HPM6P41IPB1 ELQFP-100
$5.00 Select options This product has multiple variants. The options may be chosen on the product pageSALE

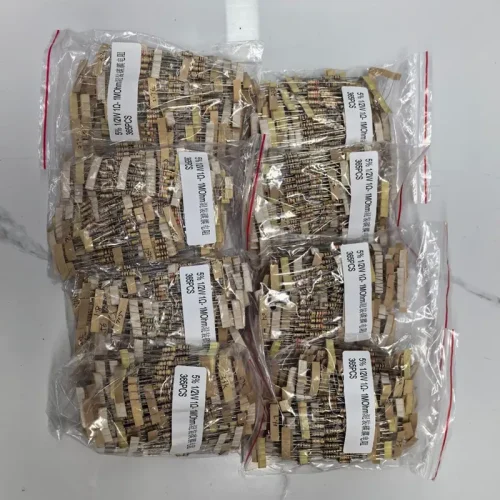

365 Piece 73Values 1/2 Watts Resistor Kit Assortment 5% 1/2W 1Ω- 1MOhm
