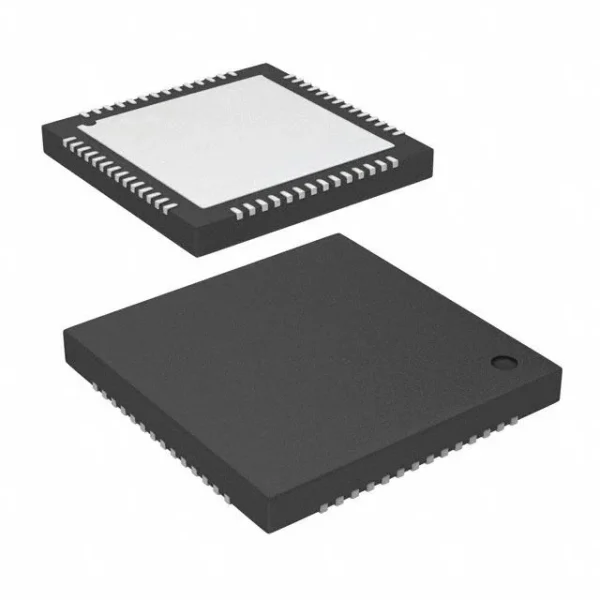

TPS23881ARTQR (VQFN-56)
$23.00
Quick RFQ
| Parameter | Specification |
|---|---|
| Manufacturer | Texas Instruments |
| Device Type | 8-Port Power Sourcing Equipment (PSE) Controller |
| IEEE Standard Support | IEEE 802.3bt Type 3/Type 4, IEEE 802.3at, IEEE 802.3af |
| Number of Ports | 8 |
| Port Configuration | 2-Pair and 4-Pair PoE |
| Maximum Output Power | Up to 90 W per port |
| Supply Voltage Range | 44 V to 57 V |
| Communication Interface | I²C |
| Current Monitoring | 14-bit ADC per port |
| Integrated Sense Resistor | 200 mΩ |
| Detection & Classification | Single- and Dual-Signature PD Support |
| Power Management | Autonomous, Semi-Auto, and Manual Modes |
| Protection Features | Overcurrent, Inrush Control, Foldback Protection |
| Operating Temperature | -40°C to +125°C |
| Package | VQFN-56 (RTQ) |
| Mounting Type | Surface Mount |
| Series | TPS23881ARTQR (VQFN-56) |
|---|
CW32F030K8T7 LQFP32
$1.00 Select options This product has multiple variants. The options may be chosen on the product pageSALE

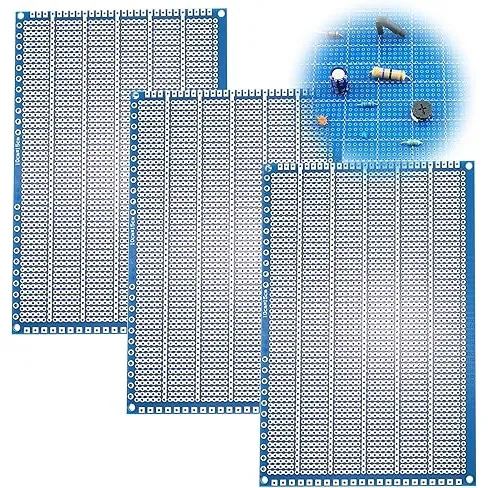

3Pack PCB Prototype Board Solderable
