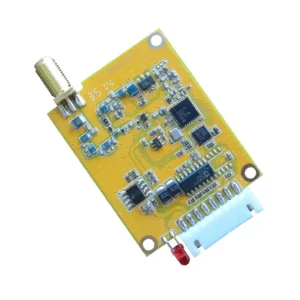

433MHz SX1278 High Power Wireless Module
$26.00
This module is designed for applications requiring long-range communication with low power consumption. It is commonly used in IoT (Internet of Things) applications, remote control systems, and wireless sensor networks.
Quick RFQ
The SX1278 High-Power Wireless Module provides robust, long-range wireless communication capabilities with low power consumption, making it ideal for many applications in IoT, industrial automation, and remote control systems.
Specifications
| Specification | Details |
|---|---|
| Chip | Semtech SX1278 |
| Modulation | LoRa, FSK |
| Frequency Range | Typically 433 MHz (varies by region) |
| Output Power | Up to +20 dBm |
| Receiver Sensitivity | Up to -139 dBm |
| Data Rate | 0.018 kbps to 37.5 kbps (LoRa) |
| Power Supply | 1.8V to 3.7V |
| Current Consumption | |
| Transmit: 120 mA (at +20 dBm) | |
| Receive: 10.3 mA | |
| Sleep: < 200 nA | |
| Interface | SPI |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Varies by manufacturer and model |
| Series | 433MHz High Power Wireless Module |
|---|
KX224-I2C-EVK-001 LGA-12(2×2)
$286.00 Select options This product has multiple variants. The options may be chosen on the product page

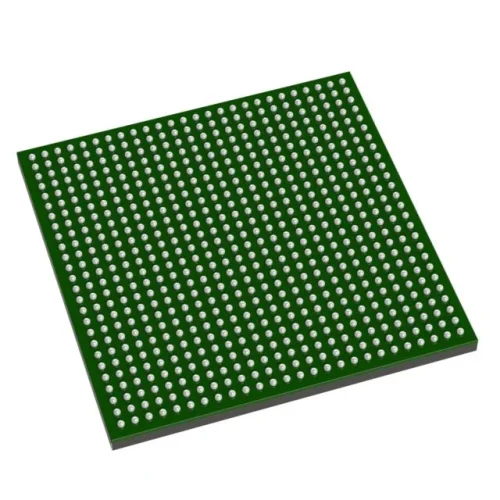

XC7Z030-1FBG676I FCBGA-676
$738.00 Select options This product has multiple variants. The options may be chosen on the product page

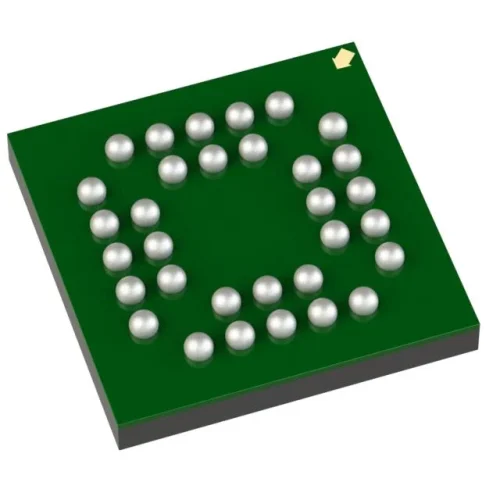

ADXRS646BBGZ BGA-32
