TMCS1107A4BQDT SOIC-8
$8.00
Quick RFQ
| Specification | Value |
|---|---|
| Model | TMCS1107A4BQDRQ1 |
| Manufacturer | Texas Instruments |
| Device Type | Galvanically isolated Hall-effect current sensor |
| Package / Case | 8-lead SOIC (surface mount) |
| Current-Sensing Range | ±5.6 A |
| Supply Voltage Range | 3 V – 5.5 V |
| Supply Current (Max) | ~5–6 mA |
| Output Type | Ratiometric analog voltage |
| Sensitivity (Typ) | 400 mV/A |
| Signal Bandwidth | ~80 kHz |
| Response Time | ~6.5 µs |
| Linearity (Typ) | ±0.5 % |
| Total Error (Typ / Max) | ±1 % / ±3 % |
| Operating Temperature Range | –40 °C to +125 °C |
| Polarization | Bidirectional current sensing |
| Isolation Rating | 3 kV RMS basic isolation; ~420 V lifetime working |
| Number of Channels | 1 |
| Mounting Type | Surface mount (SMT) |
| Qualification | AEC-Q100 automotive grade |
| Series | TMCS1107A4BQDT SOIC-8 |
|---|
TMP303ADRLT SOT-563
$4.00 Select options This product has multiple variants. The options may be chosen on the product page
SWM201G6S7-65 SSOP-28
$1.00 Select options This product has multiple variants. The options may be chosen on the product page

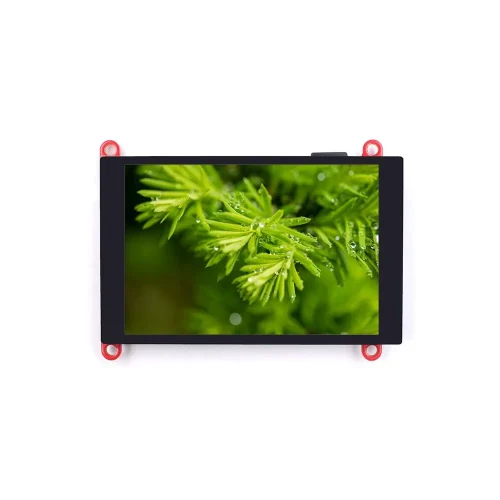

ESP32-C3(RISC-V) SPI TFT Touch 3.5”
