TMCS1107A4BQDT SOIC-8
$8.00
Quick RFQ
| Specification | Value |
|---|---|
| Model | TMCS1107A4BQDRQ1 |
| Manufacturer | Texas Instruments |
| Device Type | Galvanically isolated Hall-effect current sensor |
| Package / Case | 8-lead SOIC (surface mount) |
| Current-Sensing Range | ±5.6 A |
| Supply Voltage Range | 3 V – 5.5 V |
| Supply Current (Max) | ~5–6 mA |
| Output Type | Ratiometric analog voltage |
| Sensitivity (Typ) | 400 mV/A |
| Signal Bandwidth | ~80 kHz |
| Response Time | ~6.5 µs |
| Linearity (Typ) | ±0.5 % |
| Total Error (Typ / Max) | ±1 % / ±3 % |
| Operating Temperature Range | –40 °C to +125 °C |
| Polarization | Bidirectional current sensing |
| Isolation Rating | 3 kV RMS basic isolation; ~420 V lifetime working |
| Number of Channels | 1 |
| Mounting Type | Surface mount (SMT) |
| Qualification | AEC-Q100 automotive grade |
| Series | TMCS1107A4BQDT SOIC-8 |
|---|

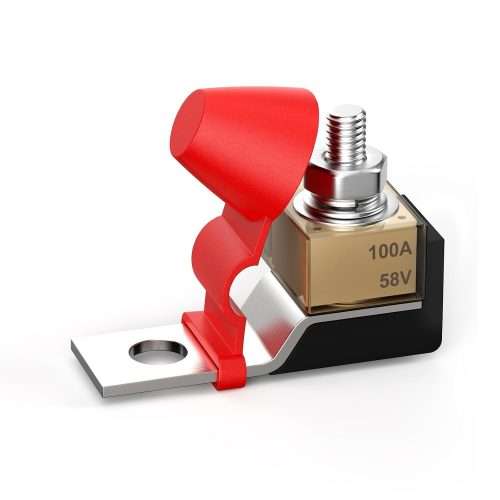

1Pack MRBF Terminal Fuse Block 100Amp, Compact Marine Rated Battery Fuse Holder

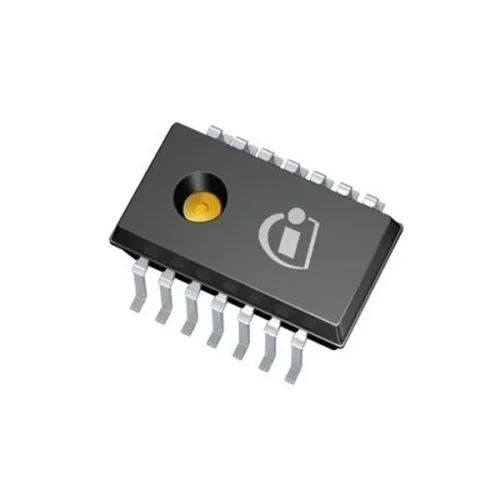

SP270-25-256-0 DSOSP-14
$8.00 Select options This product has multiple variants. The options may be chosen on the product pageTMP175AQDGKRQ1 VSSOP-8-0.65mm
$4.00 Select options This product has multiple variants. The options may be chosen on the product pageFC-AX3D FILTER_53.8X28.8MM_TM
$14.00 Select options This product has multiple variants. The options may be chosen on the product pageSOLD OUT TMCS1108A4BQDT SOIC-8

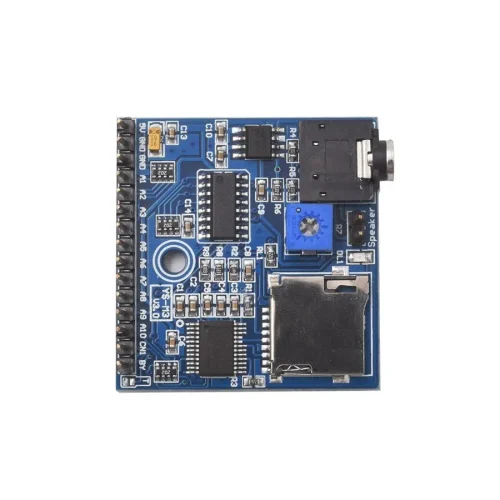

YS-M3 Music/Voice Playback Module
$9.90 Select options This product has multiple variants. The options may be chosen on the product page
Related products
Temp-Humidity Sensor Module
$0.68 – $2.95 Select options This product has multiple variants. The options may be chosen on the product page
DIY 8A Voltage Regulator Kit: Boost/Buck 5-30V to 1.25-30V
$4.66 Select options This product has multiple variants. The options may be chosen on the product page

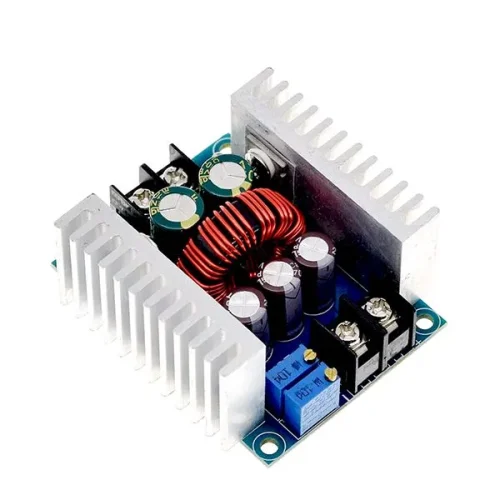

Step Down Module 300W 20A
